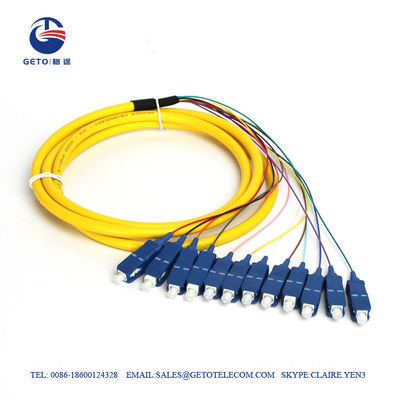

Product Details:
|
| Product Name: | 12 Core SC Fiber Optic Pigtail | Insertion Loss: | <0.3dB |
|---|---|---|---|
| Connector Plugging: | >1000 Times | Applications: | Optical Fiber Communication System |
| Cable Outer Diameter: | 0.9mm | Temperature Range: | -40 ° C - + 80 ° C |
| High Light: | Fiber Optic Pigtail Single Mode 0.3dB,0.3dB Fiber Optic Pigtail Single Mode,12 Core Sm Sc Pigtail |
||
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features
Compliant with the standard of IEC
High Return Loss
Low Insertion Loss
Good reliability and stability
Polishing type: PC, UPC, and APC
Various interfaces: SC/FC/SC/ST
Core of cable: 12
Application
Telecommunication Network
Testing Equipment
Local Ares Network
CATV
Specifications
| Parameter: | Single mode | Multi mode(optional) |
| Insertion Loss | ≤0.3dB | ≤0.20dB |
| Return Loss |
≥45 dB (PC) ≥50 dB (UPC) ≥60 dB (APC) |
≥35 dB (PC) ≥45 dB (UPC) |
| Wavelength | 1310nm,1550nm | 850nm,1310nm |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Cord diameter | 3.0mm | |
| Connector Available | SC,FC,ST,LC,MU,MTRJ | |
| Fiber core available |
4,6,8,12,24 fiber…
|
|
