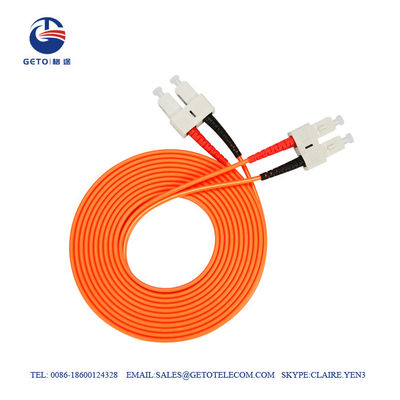

SC To SC Multimode 5m 10m 15m Optic Fiber Patch Cord

SC To SC Multimode 5m 10m 15m Optic Fiber Patch Cord
SC To SC Multimode 5m 10m 15m Optic Fiber Patch Cord

Large Image :  SC To SC Multimode 5m 10m 15m Optic Fiber Patch Cord

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001: 2015
Model Number: GSSCSC1-15
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 2
Packaging Details: Woven bag + Pallet/ Wooden box
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 500Set

SC To SC Multimode 5m 10m 15m Optic Fiber Patch Cord

Description
Product Name: Optic Fiber Patch Cord Connector Type: SC UPC
Fiber Type: Gigabit Single Mode Length: 3m,5m,10m,15m,or Custom
Working Wavelength: 1310nm-1550nm Tensile Strength: 45kg
Number Of Insertion: >1000 Times Weight: 0.96kgs
High Light:

5m Optic Fiber Patch Cord

,

10m Optic Fiber Patch Cord

,

15m Multimode Fiber Patch Cord



Description



Fiber Optic Patch Cords are used for Telecom networks and also used for high speed metropolitan and access network. Our
single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.


Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing


Support Ordering Parameters
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail





Applications

Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV

power cable clamp



Specification

Item Unit LC/SC/FC/ST Fiber Patch Cord
SM MM
Fiber Diameter UM 9/125 65.5/125 50/125
Polishing   PC UPC APC PC PC
Insertion Loss dB ≤0.2 ≤0.15 ≤0.2 ≤0.1 ≤0.1
Return Loss dB ≥55 ≥50 ≥60 ≥35dB ≥35dB
Insert-pull Test dB ≤0.2 ≤0.2 ≤0.3 ≤0.15 ≤0.15
Interchangeability dB ≤0.1 ≤0.1 ≤0.15 ≤0.1 ≤0.1
Temperature Range -40~+80
Durability(1/Matings) ≥1000
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
Diameter 0.9mm 2.0mm, 3.0mm etc
Cores Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc



Customizable SC To SC Multimode Fiber Optic Patch Cord/ Jumper Cables



Customizable SC To SC Multimode Fiber Optic Patch Cord/ Jumper Cables

Customizable SC To SC Multimode Fiber Optic Patch Cord/ Jumper Cables
