15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance

15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance
15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance 15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance 15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance

Large Image :  15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001:2015
Model Number: 15 Holes
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: 2.8-3.2USD
Packaging Details: Standard Exporting Package
Delivery Time: 15 days
Supply Ability: 5000P6CS/Week

15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance

Description
Material: Steel Surface Treatment: Hot Dip Galvanized
Sample: Free Application: Outdoor
Size: 1090 X 40 X 40mm Name: Cross Arm
Packaging: Carton Warranty: 2 Years
Corrosion Resistance: High Temperature Resistance: High
Tensile Strength: 15 KN
High Light:

High Corrosion Resistance Cross Arm

,

Cross-arm LV Angle bar

,

15kN Cross-arm Angle bar



Introduction

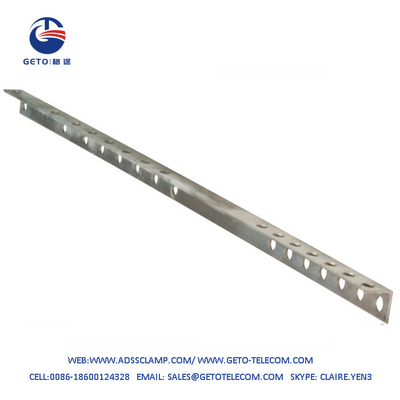

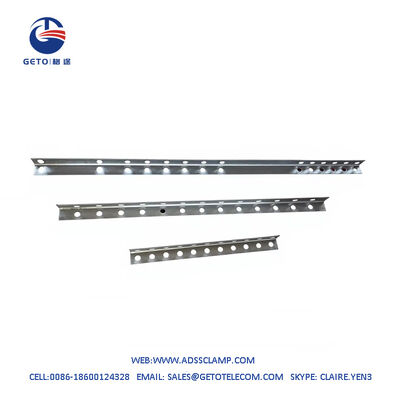

Cross-arm 15 holes Angle bar metal 1090 x 40 x 40mm with 15 holes spaced by 60mm. This cross-arm is used for the parallel deployment of telecom cables on poles initially dedicated to low voltage networks.




Installation:

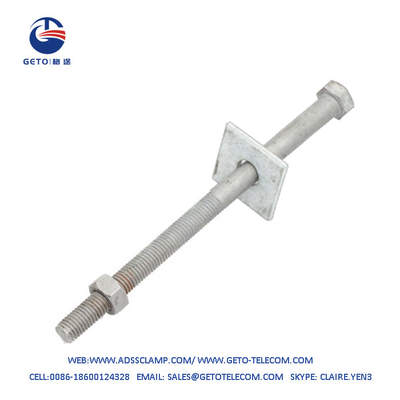

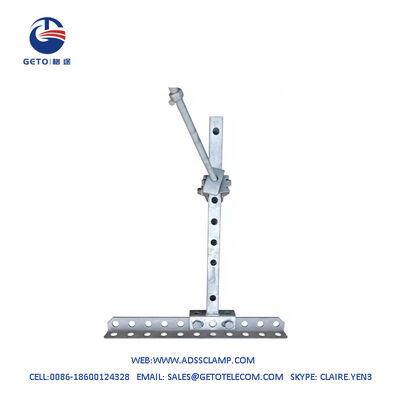

On concrete poles with 2 cross-arm brackets and 2 assembly bolts 1/12
On wooden poles with a cross-arm bracket and 2 assembly bolts 1/12
Possible to install a drop anchoring plate at the extremity.



15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance 0















Application



Cross-arm with 15 holes can be used for pole, extension bracket, polt mounting on fiber optic and copper networks









Our service



1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service







Contact us



Email: sales@getotelecom.com

Whatsapp/Tel: 86-18600124328

Web: www.getotelecom.com







Company

15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance 1

15 KN Cross-Arm LV Angle Bar Metal Bracket 15 Holes High Corrosion Resistance 2

Introduction



The cross-arm 13 holes is an angled bar section used for roll-out overhead parallel lines. Equipped with 13 holes this pole bracket mounts on a bracket compatible with the pole to be equipped.  Its role is to enable fastening points for deadending and suspension applications.



Thanks to its 820mm length, this pole hardware preserves cable against environmental constraints by offsetting them from the poles.



Crossarm 13 holes can receive multiple drop cross-arm brackets at it extremity, enabling thus to anchor drops perpendicularly to the main network.
