Product Details:
|
Material: | Steel | Surface Treatment: | Hot Dip Galvanized |
---|---|---|---|
Sample: | Free | Application: | Outdoor |
Size: | 436x40x40mm | Name: | Cross Arm |
Packaging: | Carton | Warranty: | 2 Years |
Corrosion Resistance: | High | Temperature Resistance: | High |
Tensile Strength: | 15kN | ||
Highlight: | 11Holes Cross-Arm,Poles Mounting Bracket for Overhead Lines,436 x 40 x 40mm Cross-Arm |
Application
Cross-arm with 11 holes can be used for pole, extension bracket, polt mounting on fiber optic and copper networks
Up to 8 routing cables
Cross-arm 11 holes can be used us strut to creat an offset with a cross-arm with 13 holes
Cross-Arm 11 holes Characteristics
Material: hot dip galvanised steel
Hole spacing: 40mm
Dimensions: 436x40x40mm
Introduction
Cross-arm with 11 holes can receive at its extremity a drop anchoring plate FE used for the anchoring of drop cables perpendicularly to the main network.

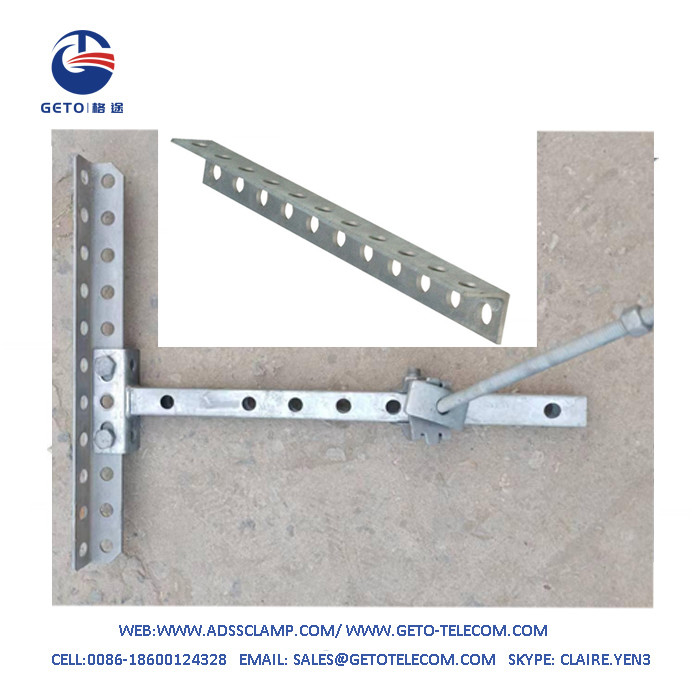

The cross-arm 11 holes is an angled bar section used for the parallel deployment of overhead lines. Presenting 11 pre-drilled holes, this cross-arm installs on a pole bracket adapted for its mounting support. This pole line hardware enables thus fastening points for deda-ending or suspension applications.
Installation:
on non drillable poles (concrete, composite,...)
on drillable poles (wooden)
on pre-drilled poles (steel, concrete,...)
on extension brackets (REFO,...)
