13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines

13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines
13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines

Large Image :  13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001:2015
Model Number: 11 Holes
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: 1~1.5USD
Packaging Details: Standard Exporting Package
Delivery Time: 15 days
Supply Ability: 5000PCS/Week

13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines

Description
Material: Steel Surface Treatment: Hot Dip Galvanized
Sample: Free Application: Outdoor
Size: 40X40X820mm Name: Cross Arm
Packaging: Carton Warranty: 2 Years
Corrosion Resistance: High Temperature Resistance: High
Tensile Strength: 15kN
High Light:

Pre-Drilled Mounting Bracket

,

13 Holes Extension Bracket

,

Extension Bracket For Overhead Lines



Introduction

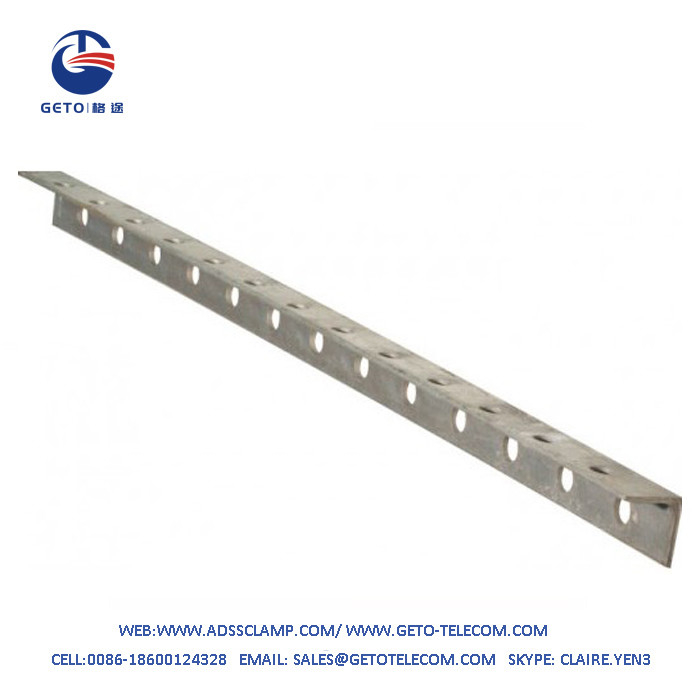

The cross-arm 13 holes is an angled bar section used for roll-out overhead parallel lines. Equipped with 13 holes this pole bracket mounts on a bracket compatible with the pole to be equipped.  Its role is to enable fastening points for deadending and suspension applications.



Thanks to its 820mm length, this pole hardware preserves cable against environmental constraints by offsetting them from the poles.



Crossarm 13 holes can receive multiple drop cross-arm brackets at it extremity, enabling thus to anchor drops perpendicularly to the main network.







Application



Cross-arm with 13 holes can be used for pole, extension bracket, polt mounting on fiber optic and copper networks

Up to 8 routing cables

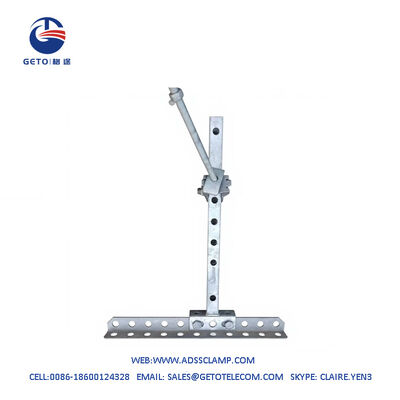

Cross-arm 1 holes can be used us strut to creat an offset with a cross-arm with 13 holes





Cross-Arm 11 holes Characteristics

Material: hot dip galvanized steel

Hole spacing: 60mm

Dimensions: 820x40x40mm

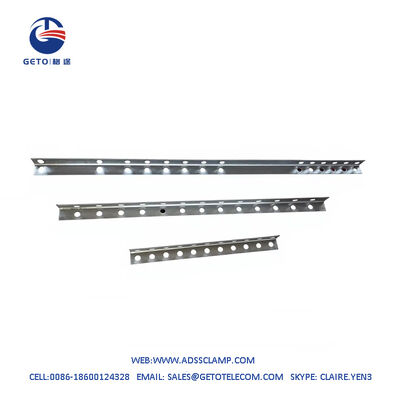

13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines 0











Installation:



on non drillable poles (concrete, composite,...)

on drillable poles (wooden)

on pre-drilled poles (steel, concrete,...)

on extension brackets (REFO,...)









Our service



1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service







Contact us



Email: sales@getotelecom.com

Whatsapp/Tel: 86-18600124328

Web: www.getotelecom.com







Company

13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines 1

13 Holes Pole/Extension Bracket/Pre-Drilled Mounting For Overhead Lines 2

Introduction



The cross-arm 13 holes is an angled bar section used for roll-out overhead parallel lines. Equipped with 13 holes this pole bracket mounts on a bracket compatible with the pole to be equipped.  Its role is to enable fastening points for deadending and suspension applications.



Thanks to its 820mm length, this pole hardware preserves cable against environmental constraints by offsetting them from the poles.



Crossarm 13 holes can receive multiple drop cross-arm brackets at it extremity, enabling thus to anchor drops perpendicularly to the main network.
