15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications

15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications
15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications

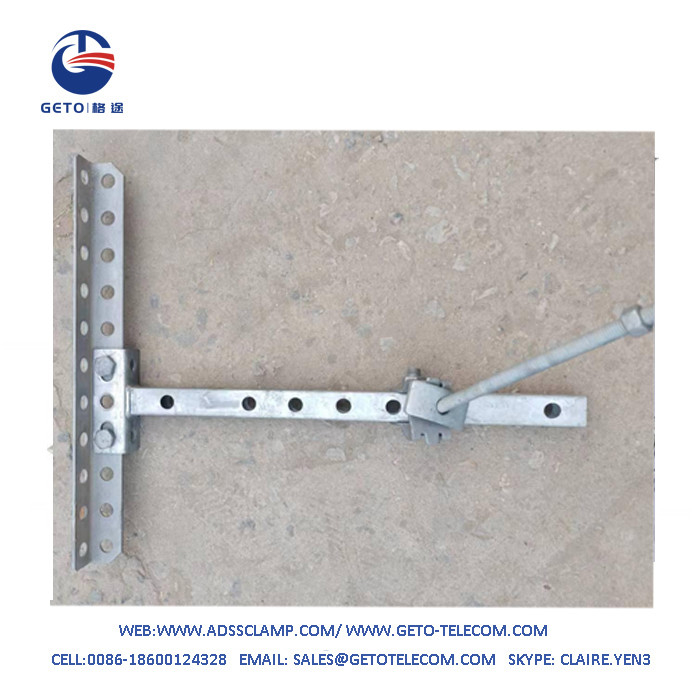

Large Image :  15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001:2015
Model Number: 11 Holes
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: 1~1.5USD
Packaging Details: Standard Exporting Package
Delivery Time: 15 days
Supply Ability: 5000PCS/Week

15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications

Description
Material: Steel Surface Treatment: Hot Dip Galvanized
Sample: Free Application: Outdoor
Size: 436x40x40mm Name: Cross Arm
Packaging: Carton Warranty: 2 Years
Corrosion Resistance: High Temperature Resistance: High
Tensile Strength: 15kN
High Light:

15kN pole cross arm

,

Cross Arm with 11Holes

,

Cross Arm for Drop Anchoring

Cross-Arm 11 holes Characteristics



Material: hot dip galvanised steel

Hole spacing: 40mm

Dimensions: 436x40x40mm



Customer benefits:

Corss-arm with 11 holes can be used for pole, extension bracket, post mounting on fiber optic and copper networks

Up to 8 routing cables





Introduction

Cross-arm with 11 holes can receive at its extremity a drop anchoring plate FE used for the anchoring of drop cables perpendicularly to the main network.



The cross-arm 11 holes is an angled bar section used for the parallel deployment of overhead lines. Presenting 11 pre-drilled holes, this cross-arm installs on a pole bracket adapted for its mounting support. This pole line hardware enables thus fastening points for deda-ending or suspension applications.

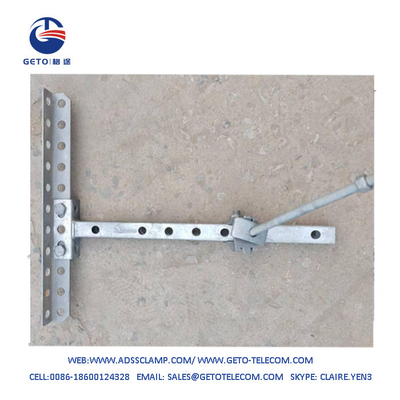

15kN Cross Arm With 11 Holes For Drop Anchoring & Suspension Applications 0



Installation:



on non drillable poles (concrete, composite,...)

on drillable poles (wooden)

on pre-drilled poles (steel, concrete,...)

on extension brackets (REFO,...)
