Product Details:
|
Product Name: | Optical Fiber Splitter | Keywords: | Fiber Distributions Pigtail |
---|---|---|---|
Applications: | Telecom Comunication | Cable Outer Diameter: | 2.0mm |
Operating Temperature: | -40-75℃ | Type: | PLC Splitter, Pigtail Type Splitter |
Warranty Time:: | 6 Months | Connector Type: | LC Connectors |
Working Wavelength: | 1260nm~1650nm | Fiber Type: | SM G657.A1 |
Highlight: | sc/apc 1x4 fiber splitter,2.0mm fiber optic splitter 1x4,sc/apc fiber optic splitter 1x4 |
Description

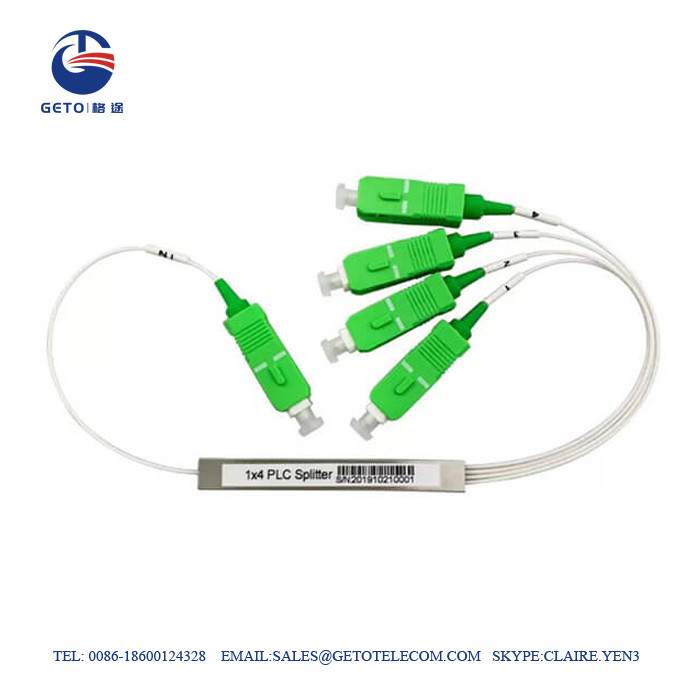

Planar Lightwave Circuit (PLC) Splitter is to use silica optical waveguide technology with an even split ratio from one input fiber to multiple output fibers. This Mini PLC Splitter is a 1×4 steel tube PLC splitter, with 1 input and 4 output fibers with an even split ratio across all fibers regardless of input wavelength. Micro module PLC Splitters are availble for 900µm loose tube with or without connector terminated. All Micro PLC Splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications
Specifications
Steel tube Size: 60x7x4mm
Fiber Type: SM G657.A1
Wavelength: 1260nm-1650nm
Splitter Ratio: 1×4
Input Cable: 1xSC/APC 1m length
Output Cable: 4xSC/APC 1m length
Insertion Loss (dB) Max: <7.2
Uniformity (dB) Max: <0.6
PDL (dB) Max: <0.2
Directivity: 55dB
Return Loss (dB) Min: 50 (55)
Operating Temperature: -40 ~ +85°C
Power Handling: 300mW
Good uniformity and low insertion loss;
Low Polarization Dependent Loss;
High Polarization Extinction Ratio &
Excellent Uniformity;
Excellent Environmental & Mechanical Stability
Small size, with the splitter type of steel tube
Ideal for EPON, GPON, FTTH/FTTX network
Stability Telecordia GR-1221 and GR-1209;
