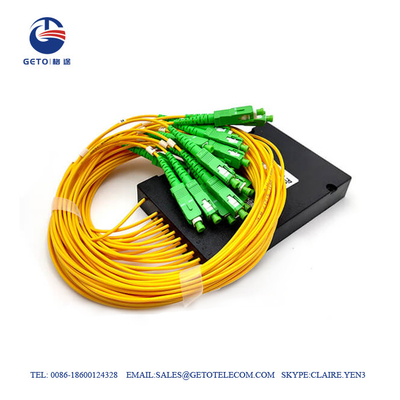

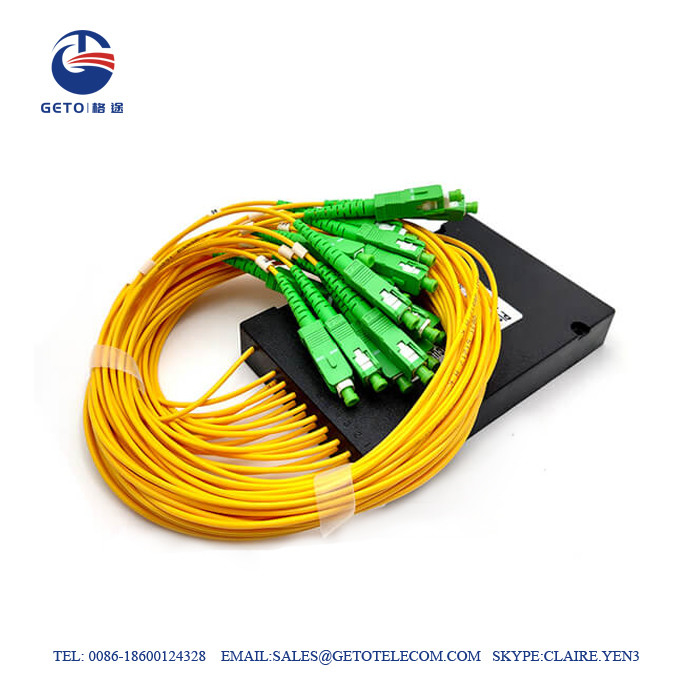

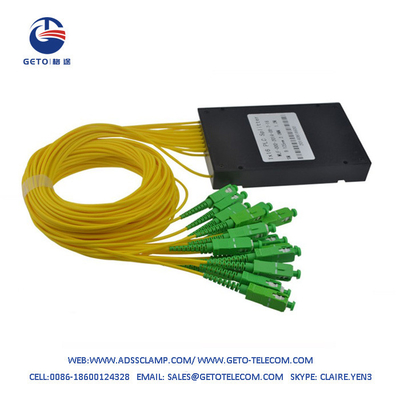

Product Details:
|
| Product Name: | 1*16 Splitters For Cabinets SC-APC PLC | Keywords: | PLC Splitters |
|---|---|---|---|
| Applications: | Telecom Comunication | Cable Outer Diameter: | 0.9mm |
| Operating Temperature: | -40-75℃ | Type: | PLC Splitter, Pigtail Type Splitter |
| Warranty Time:: | 6 Months | Connector Type: | SC/APC |
| Working Wavelength: | 1260nm~1650nm | Fiber Type: | SM G657.A1 |
| High Light: | 1*16 Fiber Optic Splitter,SC-APC Fiber Plc Optic Splitter,Fiber Optic Splitter For Cabinets |
||
Specifications
ABS Box Size: 120x80x18mm
Fiber Type: SM G657.A1
Wavelength: 1260nm-1650nm
Splitter Type: 1×16
Input Cable: 1xSC/APC 1.5m length
Output Cable: 16xSC/APC 1.5m length
Insertion Loss (dB) Max: <13.5
Uniformity (dB) Max: <1.5
PDL (dB) Max: <0.3
Directivity: 55dB
Return Loss (dB) Min: 50 (55)
Operating Temperature: -40 ~ +85°C
Power Handling: 300mW
Description
Geto telecom offers a various of ABS box and Cassette type splitter modules and products. ABS Box PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm, or LGX metal box for plug and play splitter applications.
The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.
Ruggedized 2mm Jacket
Length: 1.5 Meter leads
ABS Box Type Module
Plug and Play Ready
Low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical Stability
Telcordia GR-1221 and GR-1209
