Product Details:
|
Product Name: | 1×32 Rack Mount PLC Fiber Optic Splitter With SC/APC | Keywords: | Rack Mount Type PLC Splitters |
---|---|---|---|
Applications: | Telecom Comunication | Cable Outer Diameter: | 0.9mm |
Operating Temperature: | -40-75℃ | Type: | PLC Splitter, Pigtail Type Splitter |
Warranty Time:: | 6 Months | Connector Type: | SC/APC |
Working Wavelength: | 1260nm~1650nm | Fiber Type: | SM G657.A1 |
Highlight: | 1×32 fiber optic splitter rack mount,1650nm fiber optic splitter,plc 1x32 fiber splitter |
Description

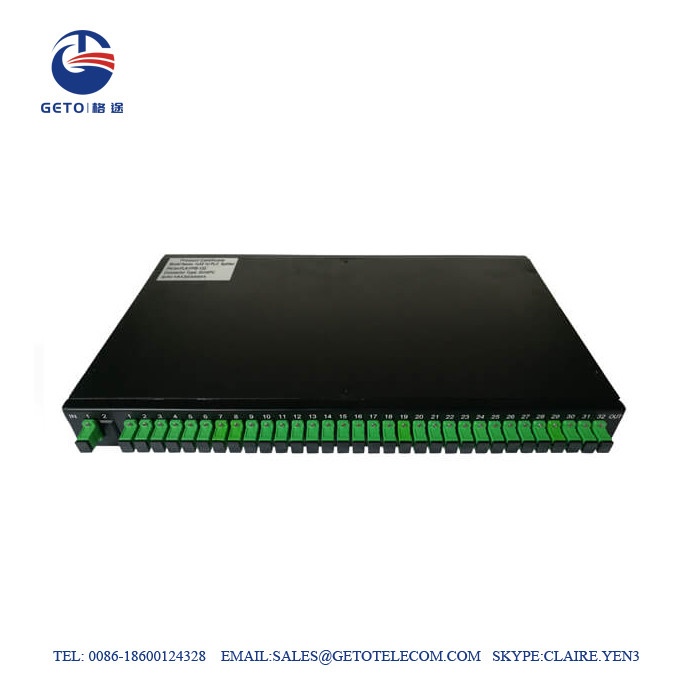

Geto Telecom provides a various of 1xN and 2xN Rack mount type PLC splitters, including 1×8, 1×16, 1×32, 1×64 PLC splitter. Rack mount PLC Splitter is terminated with SC adapter as the input and output connecting with fiber optic patch cords. All Rack Mount PLC Splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.
Specifications
Package type: Rack Mount
Panel size: 482x250x45mm
Fiber Type: SM G657.A1
Wavelength: 1260nm-1650nm
Splitter Ratio: 1×32
Connector Type: SC/APC
Insertion Loss (dB) Max: <16.9
Uniformity (dB) Max: <1.5
PDL (dB) Max: <0.3
Directivity: 55dB
Return Loss (dB) Min: 50 (55)
Operating Temperature: -40 ~ +85°C
Power Handling: 300mW
Good uniformity and low insertion loss;
Low Polarization Dependent Loss;
High Polarization Extinction Ratio & Excellent Uniformity;
1X32 Rack mount PLC splitter suitable for 19″ Rack cabinet
Small size, with the splitter type of steel tube, bare fiber
Ideal for EPON, GPON, FTTH/FTTX network
Stability Telecordia GR-1221 and GR-1209;
