Product Details:
|
| Product Name: | All-dielectric Micro-tube Building Vertical Wiring Fiber Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | G652D Fiber Optic Wire,GJPFH Fiber Optic Wire,2000m micro fiber cable |
||

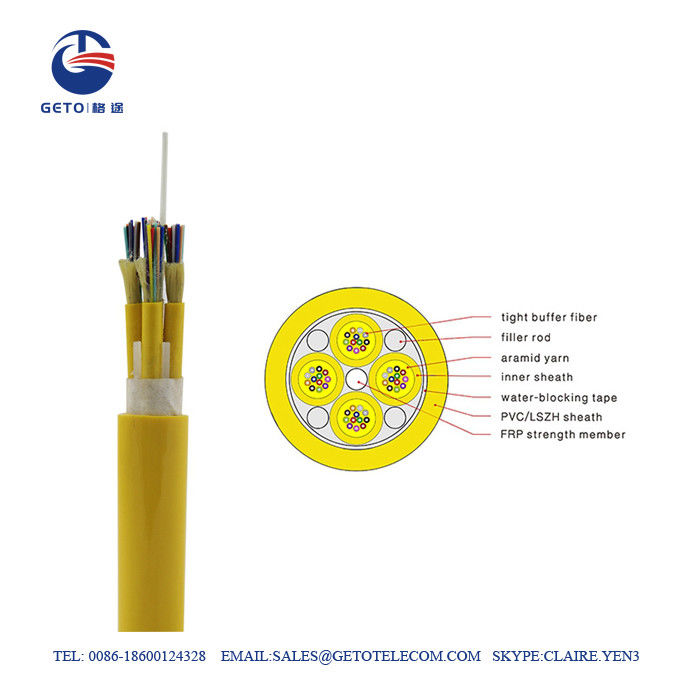

GJPFH All-dielectric Micro-tube Building Vertical Wiring Fiber Cable
Description
GJPFH fiber optic cable is mainly used for vertical and horizontal wiring of buildings.This cable fully reflects the the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.
Features:
Technical Parameters(Typical Value):
| No. of cable | 36 | 72 | ||||
| Fiber Model | G.657A2 | |||||
| Module | Material | LSZH | ||||
| Thickness | 0.17(±0.02)mm | |||||
| Diameter | 0.9(±0.05)mm | |||||
| Strength Member | Material | FRP | ||||
| Diameter | 1.0(±0.05)mm | |||||
| No. | 2 | |||||
| Outer Sheath | Material | LSZH-FR | ||||
| Color | White | |||||
| Cable Diameter | 10.5±0.5 | 11.5±0.5 | ||||
|
Max. allowable tension (Short-term) |
600N | |||||
|
Max. allowable tension (Long-term) |
200N | |||||
| Crush resistance test | 1000N/10cm | |||||
| Min. bending radius | Static | 105mm | 115mm | |||
| dynamic | 210mm | 230mm | ||||
|
Temperature range (℃) |
Installation | -5~+60 | ||||
| Transport&Storage | -40~+70 | |||||
| Operation | -5~+60 | |||||
Fibre Colours
| No. | 1 | 2 | 3 | 4 |
| Color | Red | Blue | Green | yellow |
Module Colours
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | Aqua | Pink |
Note:Othertypes of fiber can be provided according to the customer’s demands.
