Product Details:
|
Product Name: | Outdoor Aerial Drop Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Highlight: | GJYXQCH 2 Core Outdoor Fiber Optic Cable,OM2 2 Core Outdoor Fiber Optic Cable,4KM aerial fiber cable |
Description
GJYXQCH drop fiber optic cable is for outdoor aerial application. It is fire-resistant and easy to split.
Characteristic

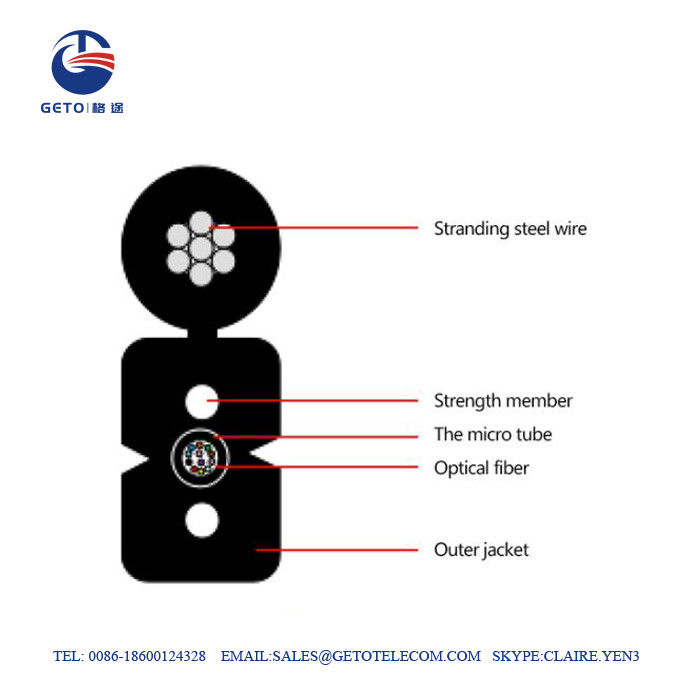

The fiber intraditional drop cable is replaced by a micro tube, which can accommodates 2-12core fiber .
Micro tube unitis dry type with small size, and ultra-thin thickness, even 12-core micro tubediameter only 1.4 mm.
Micro tube andcable sheath are easy to separate, simplifying the connection, installation andmaintenance.
Two parallelstrength members improve crush-resistant performance and protect the fiber.
With simplestructure, light weight and strong practicability.
The structure ofmicro tube has better attenuation transmission performance.
Low smokehalogen free (LSZH), flame-retardant outer sheath.
OperatingTemperature:-10℃~﹢60℃
TransmissionPerformance
Specification
Fiber Type
|
62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G.652 1310nm/1550nm |
G.657 A2 1310nm/1550nm |
Attenuation Value Max (dB/km) | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.36/0.22 |
Typical Attenuation Value (dB/km) |
3.5/1.5 | 3.0/1.0 | 0.35/0.21 | 0.35/0.21 |
Note:Othertypes of fiber can be provided according to the customer’s demands.
