Product Details:
|
| Product Name: | All Dielectric Self Supporting Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 4-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | OM2 6 Core Fiber Cable,2000m 6 Core Fiber Cable,ITU external fibre optic cable |
||
All dielectric self Supporting Cable 6 Core Fiber Optic Cable
Description
Adss fiber cable (adss cable) can be used in applications like below:
Railways, power and telecommunication pole routes
Can be used in areas suffered from frequent lightning
Ideal for transmission lines with high electrical field strength
Suitable for installation on poles and on the power distribution network
Aerial self-supporting applications at short, medium and long span distances
Characteristics
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Excellent performance of resistance to electromagnetic interference.
Specification

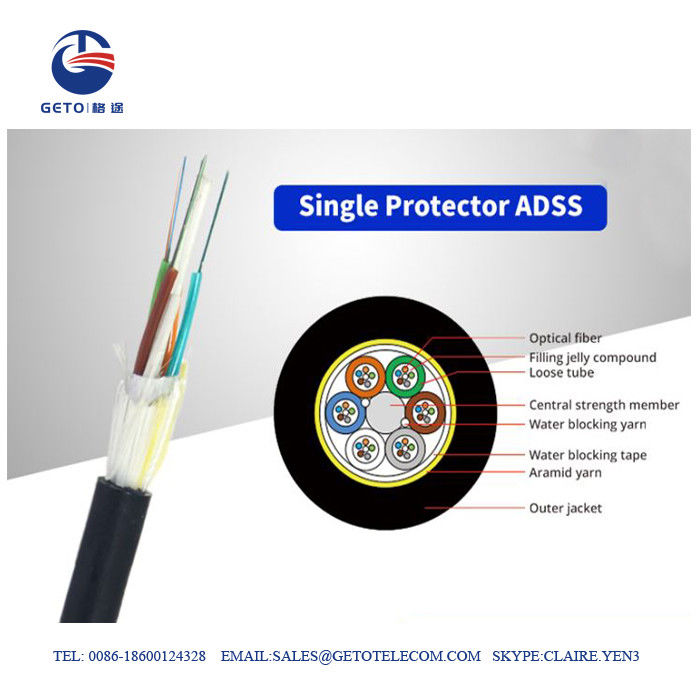

Single Sheath ADSS (loose tube stranding, Non-metal strength member, Half dry water-blocking, PE inner sheath, Aramid yarn strength member, PE outer sheath)
| Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
| Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
| Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
| Structure parameters: | |||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
| Cable Type | Drum | ||||
| Height(mm) | Width (mm) | Inner Diameter (mm) | Length (Km) | Drum Type | |
| ADSS-4 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-6 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-8 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-12 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-24 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-36 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-48 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-72 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-96 | 1200 | 760 | 650 | 2 | Plywood wood drum |
