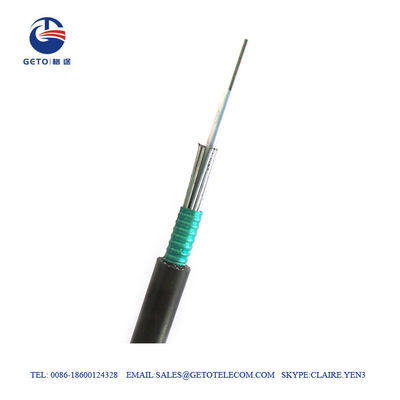

Product Details:
|
Product Name: | Duct Aerial Armoured Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 2-12 Cores | Application: | Used For Duct Or Aerial Applications |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Highlight: | 12 Core Outdoor Armored Fiber Optic Cable,GYXS Outdoor Armored Fiber Optic Cable,G657A fiber drop cable |
Description:
product name | GYXS 16 core |
product description |
*central tube structure *steel wire armoring *steel-polyethylene adhesive jacket |
standards | YD/T 769-2010 outdoor central tube optical cable for telecommunications |
characteristic |
*good mechanical and temperature performance *high strength loose tube which is hydroysis resistant *special tube filling compound ensure a critical protection of fiber *crush resistance and flexibility *enhancing moisture-proof *small diameter, light weight, friendly installation *long delivery length |
fiber | structure | nominal diameter (mm) | nominal weight(kg/km) | long-term/short-term permitted tensile (N) | long-term/short-term permitted crush(N) | static /dynamic bend radius(mm) |
2-12 | central tube | 9.4 | 128 | 600/1500 | 300/1000 | 10D/20D |
20-24 | central tube | 10 | 149 | 600/1500 | 300/1000 | 10D/20 |
