Product Details:
|
| Product Name: | Flat Drop Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | GJYXFH03 Flat Drop Fiber Cable,ITU Flat Drop Fiber Cable,96 cores plenum fiber cable |
||

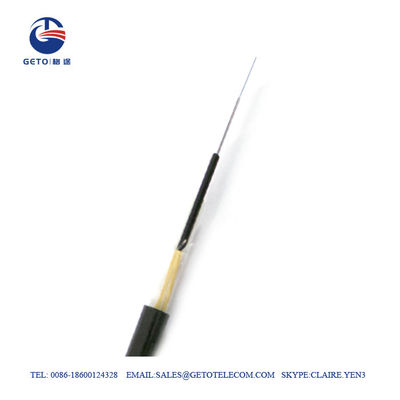

GJYXH03 GJYXFH03 Duct Bow-Type Drop Cable Flat Drop Cable
Description
GJYXH03, GJYXFH03 In the GJYXH03 cable,fibre ribbons are positioned in the loose tubes,which are made of high modulus plastic materials, while the loose tubes strand together around metallic central strength member into a compact and circular cable core.
The kind of cable is suitable for fiber to the home.
Characteristic
Duct Bow-Type Drop Cable
The kind of cable is suitable for duct to the home;
Excellent waterproof performance and excellent tensile strength;
Excellent lateral waterproof performance.
Operating Temperature:-20℃～﹢70℃
Specification
Product Description:
GJYXH03 (Metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket)
GJYXFH03 (Non-metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket)
Technical Parameters(Typical Value):
| Type | Fiber Count | Diameter (mm) |
Weight (kg/km) | Tensile(N) Long Short term term |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic |
|||
| GJYXH03 | 1, 2, 4 | 6. 0 | 28. 2 | 300 | 600 | 1000 | 2200 | 15 | 30 |
| GJYXFH03 | 1, 2, 4 | 6. 0 | 25. 3 | 100 | 200 | 500 | 2200 | 15 | 30 |
Note
1.The relevant technical Parameters can be adjusted according to the customer’s demands;
2.PVC and other materials can be used as jacket according to the customer’s demands.
Note:Othertypes of fiber can be provided according to the customer’s demands.
