Product Details:
|
| Product Name: | Duct FTTH Drop Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | OM4 FTTH Drop Cable,GJYXH03 FTTH Drop Cable,MDPE aerial drop cable |
||
Description
GJYXH03, GJYXFH03 This kind of is designed for introcing from outdoor to indoor. It is an ordinary flat drop cable coverd with an outer sheath, which improves the mechanical performance and water-blocking performance.
The kind of cable is suitable for fiber to the home.
Characteristic
Duct Bow-Type Drop Cable
The kind of cable is suitable for duct to the home;
Excellent waterproof performance and excellent tensile strength;
Excellent lateral waterproof performance.
Operating Temperature:-20℃～﹢70℃
Specification
Product Description:

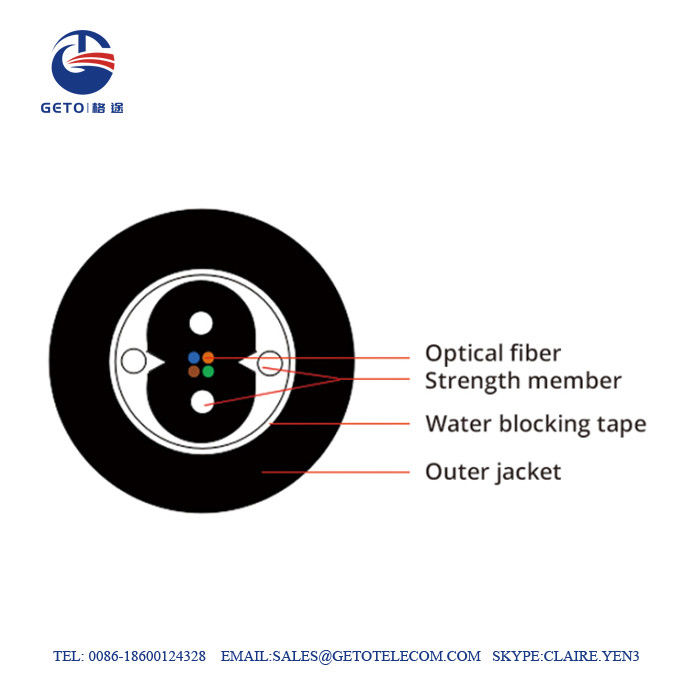

GJYXH03 (Metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket)
GJYXFH03 (Non-metal strength member, LSZH inter jacket, Water blocking tape, PE outer jacket)
Technical Parameters(Typical Value):
| Type | Fiber Count | Diameter (mm) |
Weight (kg/km) | Tensile(N) Long Short term term |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic |
|||
| GJYXH03 | 1, 2, 4 | 6. 0 | 28. 2 | 300 | 600 | 1000 | 2200 | 15 | 30 |
| GJYXFH03 | 1, 2, 4 | 6. 0 | 25. 3 | 100 | 200 | 500 | 2200 | 15 | 30 |
Note
1.The relevant technical Parameters can be adjusted according to the customer’s demands;
2.PVC and other materials can be used as jacket according to the customer’s demands.
Note:Othertypes of fiber can be provided according to the customer’s demands.
