Product Details:
|
| Product Name: | Flat Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | GJXFH 2 Core Fiber Optic Cable,G657A 2 Core Fiber Optic Cable,OM4 flat drop cable |
||
GJXFH Bow-type Drop Optical Cable
Description

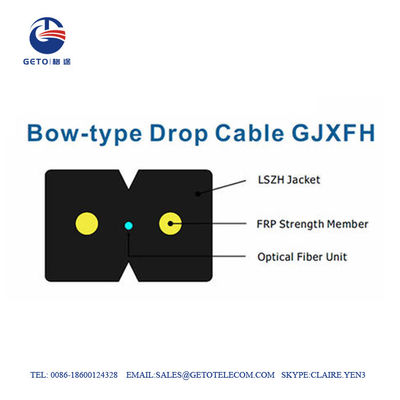

The typical GJXFH bow-type drop optical cable includes central optical fibre(s) with 2 parallel KFRPs as the strength members placed on both sides, a LSZH sheath is extruded outside
Characteristics
• Choice of fibre types
• Single mode optical fibre meting ITU-T G.657A1 or ITU-T G.657A2
• Individually coloured optical fibres
• Notched 2 x 3 mm construction for easy stripping
• White LSZH jacket for internal use
• Black LSZH jacket for short distance external use
Applications
intelligent building, digital community, campus network, LAN
Operating Temperature:-20℃～﹢70℃
Specification
| Cable Code |
Fiber Count |
Cable Size (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short term(N) |
Crush Resistance Long/Short term (N/100mm) |
Bending Radius Static/Dyna mic (mm) |
||
| GJXFH | 2 | (2.0±0.1)× (3.0±0.1) |
9 | 40/80 | 500/1000 | 15/30 |
