Product Details:
|
Product Name: | LSZH Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Highlight: | OM4 Armored Fiber Optic Cable Single Mode,2000m Armored Fiber Optic Cable Single Mode,OM4 single mode optical fiber cable |
GJXFH LSZH Fiber Optic Cable Single Mode Optical Fiber Cable
Description

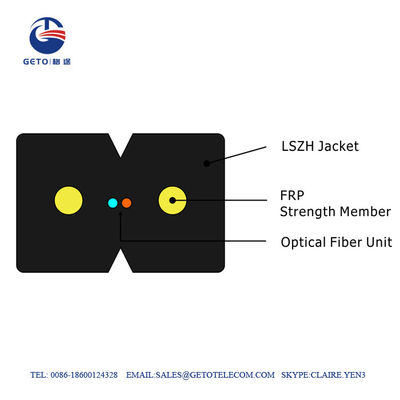

GJXFH LSZH Fiber Optic Cable with easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.
Characteristics
• Choice of fibre types
• Single mode optical fibre meting ITU-T G.657A1 or ITU-T G.657A2
• Individually coloured optical fibres
• Notched 2 x 3 mm construction for easy stripping
• White LSZH jacket for internal use
• Black LSZH jacket for short distance external use
Applications
intelligent building, digital community, campus network, LAN
Operating Temperature:-20℃~﹢70℃
Specification
Cable Code |
Fiber Count |
Cable Size (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short term(N) |
Crush Resistance Long/Short term (N/100mm) |
Bending Radius Static/Dyna mic (mm) |
||
GJXFH | 2 | (2.0±0.1)× (3.0±0.1) |
9 | 40/80 | 500/1000 | 15/30 |
