Product Details:
|
| Product Name: | GYFTY Optical Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 4-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | OM3 Blue Fiber Cable,GYFTY Blue Fiber Cable,4000m armoured fibre cable |
||

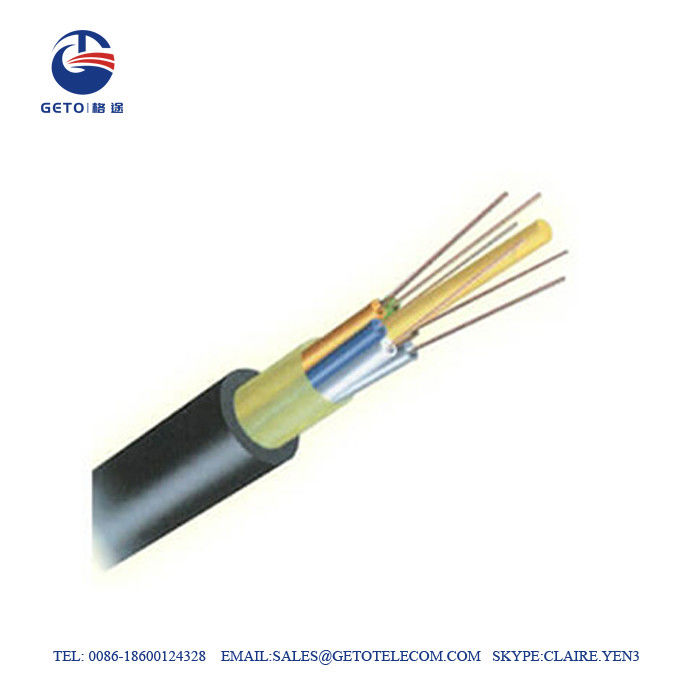

GYFTY Optical Cable Single Core Fiber Optic Cable
Description
Features:
–Fiber counts 2-144C
–Anti-electromagnetic, light weighted
–FRP strength member and non-armored feature enable it be install in high voltage area
–Good water blocking material prevents the cable from longitudinal water penetration
–Compliant with related IEC standards
Specification
| Structure parameters: | Structure | Nominal diameter(mm) | Nominal weight(kg/km) | Permitted tensile (N) |
Permitted crush(N) | Bend Radius(mm) |
| 2-36 | 1+6 | 8.6 | 60 | 600/1500 | 300/1000 | 10D/20D |
| 38-72 | 1+6 | 9.3 | 68 | 600/1500 | 300/1000 | 10D/20D |
| 74-84 | 1+7 | 10 | 82 | 600/1500 | 300/1000 | 10D/20D |
| 86-96 | 1+8 | 10.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| 98-108 | 1+9 | 11.4 | 103 | 600/1500 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 12 | 114 | 600/1500 | 300/1000 | 10D/20D |
| 122-132 | 1+11 | 12.6 | 125 | 600/1500 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 13.3 | 138 | 600/1500 | 300/1000 | 10D/20D |
| 146-216 | 1+6+12 | 13.8 | 149 | 600/1500 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 15.5 | 195 | 600/1500 | 300/1000 | 10D/20D |
