Product Details:
|
| Product Name: | All Dielectric Self-Supporting Cable Double Jacket | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 4-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
| High Light: | OM4 ADSS Fiber Cable,96 Cores ADSS Fiber Cable,ITU high density fiber cable |
||
All Dielectric Self-Supporting cable Double Jacket
Description
Feature
| Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
| Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
| Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |

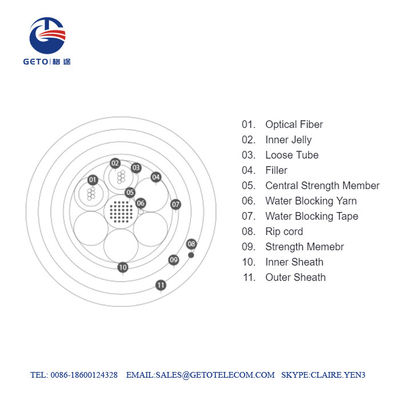

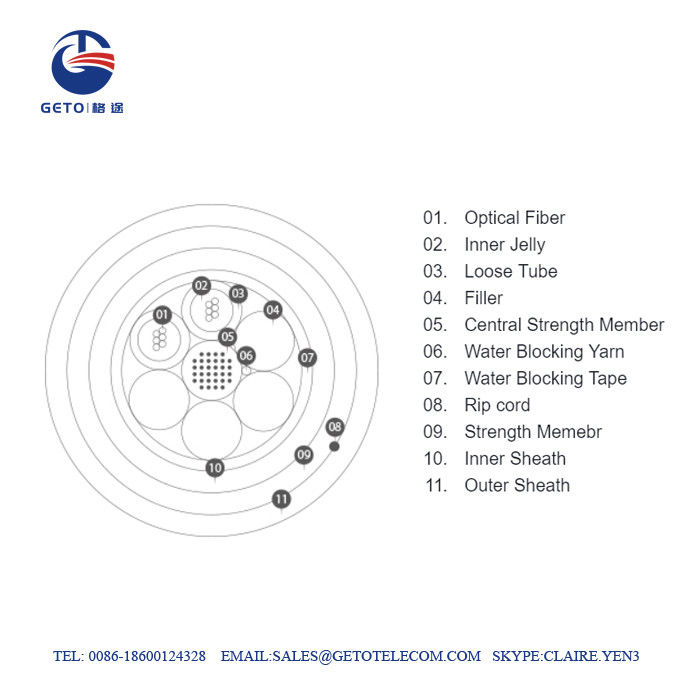

| Structure parameters: | |||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
| Cable Type | Drum | ||||
| Height(mm) | Width (mm) | Inner Diameter (mm) | Length (Km) | Drum Type | |
| ADSS-4 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-6 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-8 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-12 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-24 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-36 | 900 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-48 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-72 | 950 | 760 | 500 | 2 | Plywood wood drum |
| ADSS-96 | 1200 | 760 | 650 | 2 | Plywood wood drum |
