Product Details:
|
Product Name: | FTTH Optic Fiber Cable FTTH Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description
GJYXFCH/GJYXCH FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

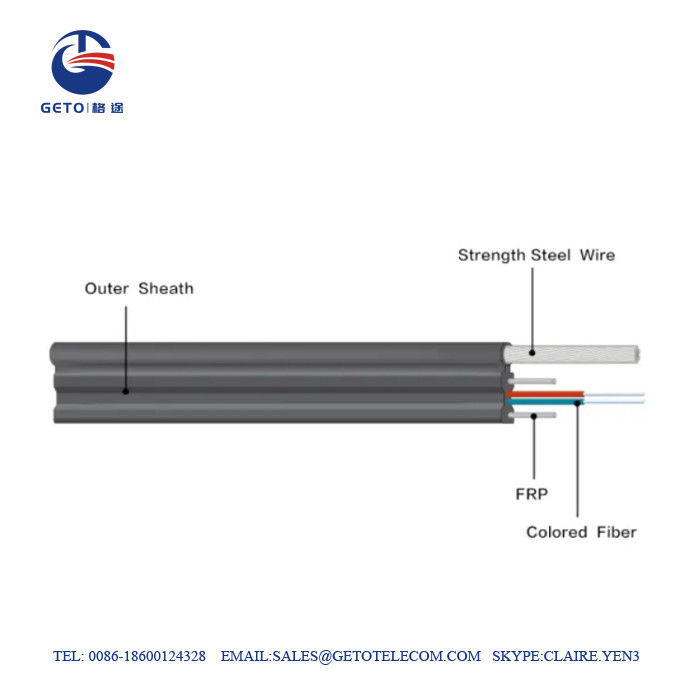

The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) or Steel Wire strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Characteristics
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meet the requirements of relevant standards;
· The mechanical characteristics of jacket meet the requirements of relevant standards;
· Soft, flexible, easy to lay and splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Specification
Item | Parameters | |||
Fiber | Color | Natural color | All colors display | |
Number of cores | 1 | 2 | 4 | |
Strength member |
Material | Phosphating steel wire | ||
Diameter (mm) | 0.45 | |||
Outer jacket | Material | LSZH Oxygen index≥25%) | ||
Color | White | |||
Cable diameter(mm) | 2.0±0.1*3.0±0.1 | |||
Min. bending radius |
Static | 15mm | ||
Dynamic | 30mm | |||
Tensile performance | Short term | 200N | ||
Crush |
Short term | 2200N/100mm |
