Product Details:
|
Product Name: | 12 Strand Overhead Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description

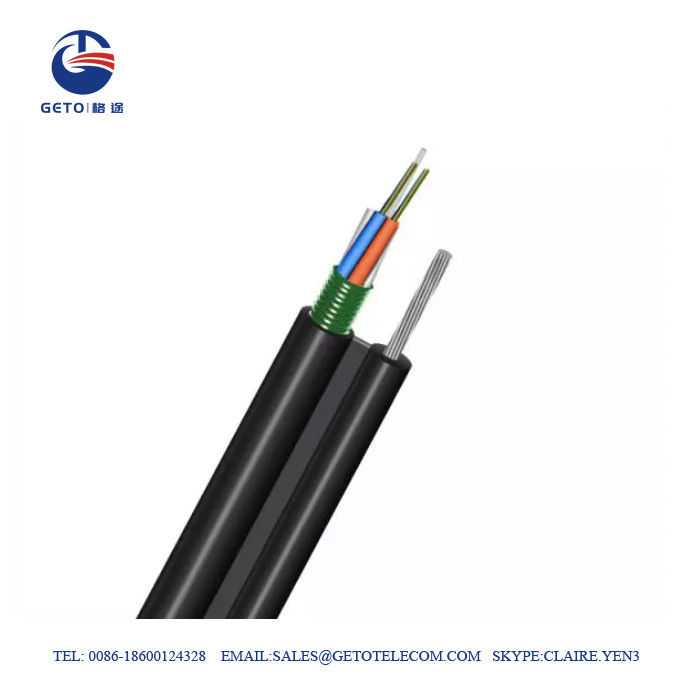

Fiber optic cable GYTC8S has below features:
–Small cable diameter, cross section shows figure 8 Self-supporting stranded wires, easily to install
–Low dispersion and attenuation
–Excellent mechanical and environmental performance
–Water blocking system to improve the water-proof ability
–Steel-wire strength member ensures tensile strength
–Corrugated steel tape armored and PE outer sheath improve crush resistance
Specification
GYTC8S aerial fiber cable (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive sheath,)
Standards: YD/T 1155-2011 ‘8’ layer self-supporting optical cable for telecommunications
Fiber Count | Structure | Fibers/ tube | Loose tube diameter (mm) | CSM diameter / pad diameter (mm) | Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable Weight (kg/km) |
4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 147 |
36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 162 |
48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 162 |
72 | 1+6 | 12 | 2.0±0.1 | 2.0/2.0 | 1.6±0.1 | 10.4 ±0.5/17.3 ±0.8 | 185 |
96 | 1+8 | 12 | 2.0±0.1 | 2.2/3.5 | 1.6±0.1 | 12.0 ±0.5/19.2 ±0.8 | 223 |
