Product Details:
|
| Product Name: | 12 Core Single Mode Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-12 Cores | Application: | Used For Duct Or Aerial Applications |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description:

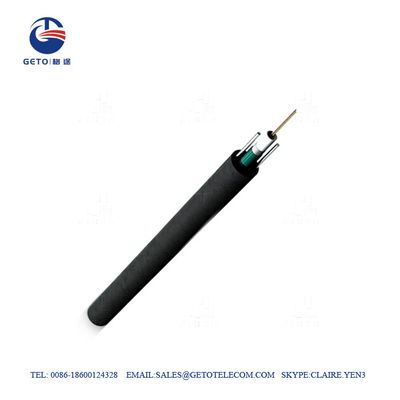

GYXTW fiber optic cable Central tube Steel polyethylene laminate Armored Cable.
Optical fiber applications place: Installed in ducts, underground conduits, aerial
Fiber optic cable types:GYXTW
Fiber Numbers:1-12 fibers
| Fiber count | Structure | Fibers/ tube | Loose tube diameter (mm) |
Wire diameter (mm) |
Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 2 | Unitube | 2 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 4 | Unitube | 4 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 6 | Unitube | 6 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 8 | Unitube | 8 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 10 | Unitube | 10 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| 12 | Unitube | 12 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Natural color | |
| Armoured | Material | Plastic coated steel strip |
| Reinforced pieces | Material | Phosphating steel wire |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Tensile performance | Short term | 1500N |
| Crush | Short term | 1000N/100mm |
Specification
GYTS (loose tuber-stranding,metal strength member, flooding jelly compound, steel-polyethylene adhesive sheath)
Standards:
YD/T901-2009 outdoor layer stranded optical cable for telecommunications.
Note: 1. D refers to the cable diameter;
3. The block water way can be adjusted according to the customer’s demands;
4. The design flame resistance,anti-rodent,termite resistant cable according to the customer’s demands.
