Product Details:
|
| Product Name: | Underground Backbone Cable Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-288 Cores | Application: | Used For Duct Or Aerial Applications |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description:

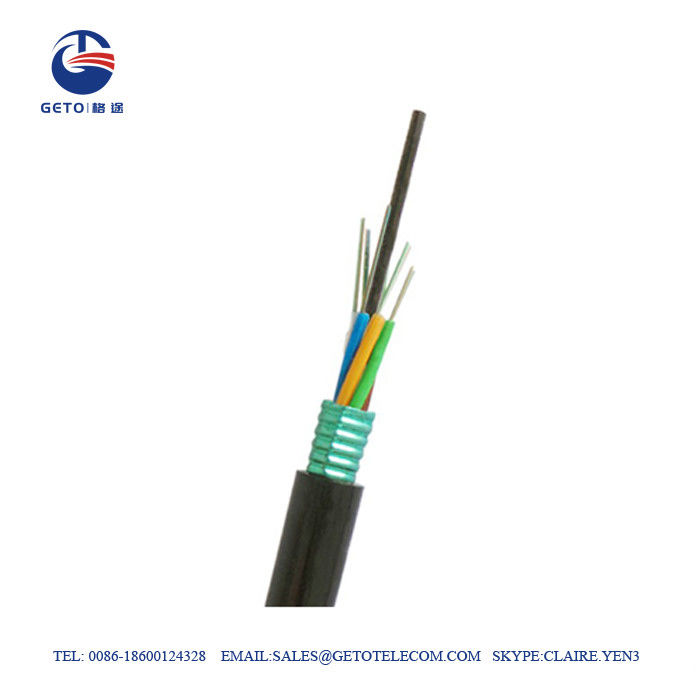

GYTS outdoor G652d single mode fiber optic cable (GYTS underground cable)
is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. It is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. We provides GYTS from 4 fiber cores to 288 fiber cores. Both single mode type and multi-mode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
Applications:
Inter-building voice or data communication backbone.
Installed in duct, underground conduit.
Characteristics:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
Specification
GYTS (loose tuber-stranding,metal strength member, flooding jelly compound, steel-polyethylene adhesive sheath)
Standards:
YD/T901-2009 outdoor layer stranded optical cable for telecommunications.
Note: 1. D refers to the cable diameter;
3. The block water way can be adjusted according to the customer’s demands;
4. The design flame resistance,anti-rodent,termite resistant cable according to the customer’s demands.
