Plenum Armored Spiral Steel Adss Om3 Distribution Cable

Plenum Armored Spiral Steel Adss Om3 Distribution Cable
Plenum Armored Spiral Steel Adss Om3 Distribution Cable
Plenum Armored Spiral Steel Adss Om3 Distribution Cable Plenum Armored Spiral Steel Adss Om3 Distribution Cable

Large Image :  Plenum Armored Spiral Steel Adss Om3 Distribution Cable

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001: 2015
Model Number: ADSS
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: 0.3
Packaging Details: Drum
Delivery Time: 5-8 Days
Payment Terms: L/C, T/T
Supply Ability: 3000 M/Day

Plenum Armored Spiral Steel Adss Om3 Distribution Cable

Description
Product Name: ADSS Fiber Cable Fiber Type: ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core: 4-96 Cores Application: Self Supporting Outdoor Fiber Optic Cable
Armored: Yes Operating Temperature: -40℃ To + 70℃
Out Sheath: Black Polyethylene (PE) Packing: 1km/2km/4km/roll
Color: Black, Usually Black Color, Blue Or Others, Aqua, Yellow Jacket Material: LSZH, PVC, PE, TPU, PVC/LSZH
Sheath: MDPE/HDPE, PLENUM, LSZH, PVC, Ect Strength Member: Steel Wire, Metallic Wire, FRP
High Light:

armored om3 distribution cable

,

adss om3 distribution cable

,

om3 distribution adss fiber cable



Mini Self-supporting 12 Cores Flat Drop Optic Cable





Description



OM3 Plenum Armored Spiral Steel Distribution Cable, is put 900um or 600um tight buffer fibers wrapped a layer of Spiral Stainless steel tube and add a layer of water-blocking Kevlar yarns as strength unit, finally into fiber optic cable with PVC or LSZH sheath. The fiber core is protected by a Spiral steel tube that offers easy installation and high crush resistance. The plenum armored steel fiber optic cable allow direct buried or aerial installation for indoor or outdoor environmental conditions.







Characteristics



Micro Armor Fibers
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
2. Lightest and smallest armor makes routing and installation faster and easier
3. Cables are up to 65% smaller and 75% lighter than conventional Congregated Steel Tape (CST)

Encased Armor Spiral Steel Tube
1. Provides the strongest armor with maximum bend radius and designed for
all indoor & outdoor conditions
2.Crush and rodent resistant for multiple usages
3.Integral Spiral steel tube (SST) provides rugged protection, ensure high crush resistance

Outer Jackets
1.All jackets and colors compatible for Riser, Plenum, Indoor/Outdoor, LSZH, Buried & Industrial projects

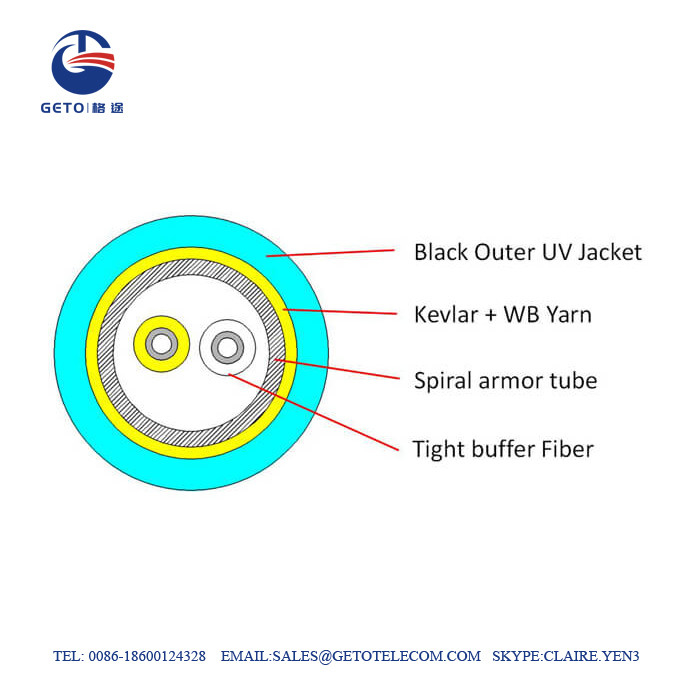

Specification



Plenum Armored Spiral Steel Adss Om3 Distribution Cable 0





Name: Plenum OM3 Armored Spiral Steel Cable
Fiber Type: MM OM3
Fiber Count: 2 Fibers
Tight-buffer Fiber: 600±50μm
Spiral Steel Tube: 1.8±0.2mm (SUS 202)
Strength Member: Kevlar+WB yarn (4*1000D)
Outer Diameter: 3.0±0.3mm
Outer Jacket: LSZH Black UV Jacket



Plenum Armored Spiral Steel Adss Om3 Distribution Cable 1
