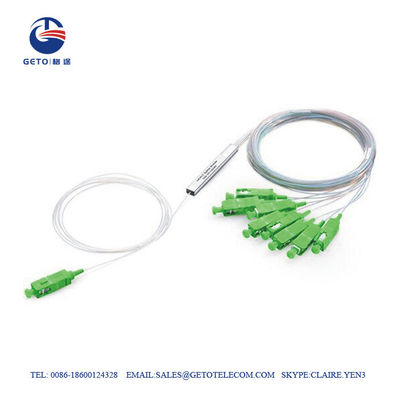

Product Details:
|
| Product Name: | Optical Fiber Splitter | Cable: | 0.9mm, 2.0mm, 3.0mm |
|---|---|---|---|
| Connector Type: | SC/UPC | Applications: | FTTH FTTB FTTX PON CATV |
| Type: | Single Mode | Operating Temperature: | -40~+85℃ |
| Pigtail Length: | 1m, 1.5m Or Customized | Warranty Time:: | 6 Months |
| Features:: | Good Temperature Stability | Test Wavelength: | 1310nm |
| Working Wavelength: | 1260nm~1650nm | Service: | OEM ODM |
| High Light: | 4 Way Fiber Optic Splitter PLC,1x4 Fiber Optic Splitter PLC,1x4 4 Way Fiber Splitter |
||
Applications
FTTx (FTTB, FTTH, FTTC)
Passive optical networks (PON)
Local area networks (LAN)
CATV systems
Test equipments
| Number of Channels | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Operating Wavelenth | 1260 to 1650 | |||||||||||
| P Level Insertion Loss | 4 | 7.4 | 10.5 | 13.7 | 17 | 20.3 | 4.4 | 7.6 | 10.8 | 14.1 | 17.4 | 20.7 |
| S Level Insertion Loss | 4.2 | 7.6 | 10.7 | 14 | 17.3 | 17.3 | 4.6 | 7.9 | 11.2 | 15 | 18.1 | 21.7 |
| Uniformity | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 |
| PDL | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | More than 55 | |||||||||||
| Directivity | More than 55 | |||||||||||
| Type of fiber | ITU G657A | |||||||||||
| Operating temperature | -40 to 85 | |||||||||||
| Pigtail length | 1m or 1.5m or customized | |||||||||||
Features
Low insertion loss
Low PDL
High return loss
Uniform power splitting
Compact design
Wide operating wavelength
Wide operating temperature
Excellent environmental &mechanical stability
Qualified under telcordia GR-1221 and GR-1209
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
