Product Details:
|
| Name: | Hotline Tap Connector | Material: | H.D.G Steel |
|---|---|---|---|
| Application: | Mconnection From The Hot Line To A Transformer | Weight: | 0.245KGS/ 0.33KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | ||
| High Light: | 0.547'' Hot Line Connector,S1530AGP Hot Line Connector,HDG hotline clamp |
||

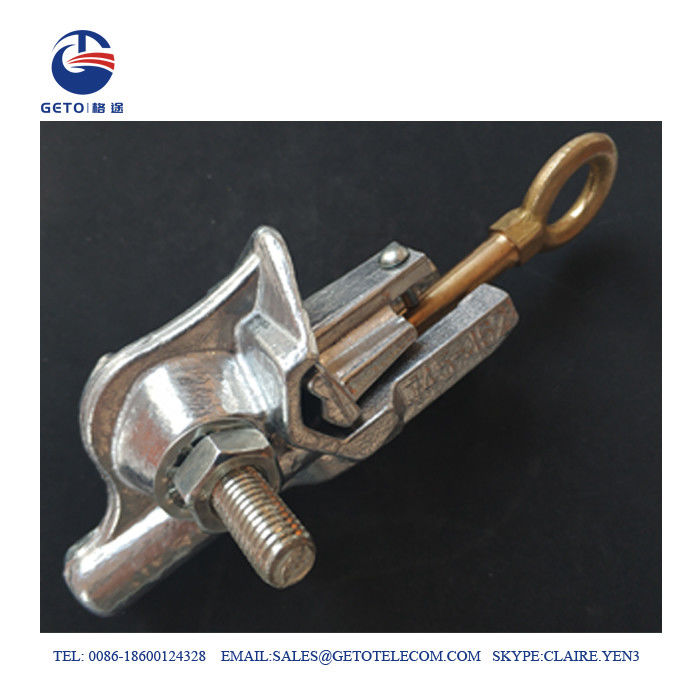

Cast Aluminum Line Tap Connector Hotline Tap Connector
Overview
The purpose of Hot Line Clamp Tap Clamp is to make a tap connection from the hot line to a transformer or other piece of equipment located at a distance from the transmission line, the tap connection being so arranged that it may be repeatedly disconnected and restored without injury to the main transmission line, and with due regard to the safety of the lineman or electrician whose duties require .him to install or service the electrical equipment.
Feature
1-Bronze alloy and aluminum alloy castings offer high strength, corrosion-resistance and conductor compatibility
2-Extended jaw width means excellent conductor contact, reduced joint temperature, minimal conductor cold flow and reduced twisting of the conductor during installation
3-Spring loaded feature compensates for cold flow and offsets tightening torque vibrations
4-Forged eyebolts provide corrosion free strength and uniformed expansion under loading
5-The side positioned tap connection prevents possible corrosion of conductor or clamp on bimetal connections
| Article | Tap of Connector | Main Line Range | Tap Line Range | Recommended Torque | ||
| No | Main | Tap | Diameter Inch | Diameter Inch | Eyescrew | Terminal |
| S1520APG | Al | Al | 0.414-0.128 | 0.438-0.128 | 180 in-lb. | 180 in.-lb. |
| S1530APG | Al | AL | 0.745-0.162 | 0.547-0.162 | 200 in.-lb. | 250 in.-lb. |
| Part Name | Qty | Material |
| Body | 1 | Al-alloy |
| Keeper | 1 | Al-alloy |
| Tap Eye Bolt | 1 | Brass tin plate |
| Eye Screw | 1 | Brass |
| Spring Washer | 1 | Stainless |
