Product Details:
|
| Name: | Hotline Bail Clamp | Material: | Aluminum/Copper |
|---|---|---|---|
| Application: | Develops Vibration Proof Connection On Conductor | Weight: | 0.58/0.98KGS |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | Range: | 35~70/ 70-185 Sqm |
| High Light: | 185 sqm Pole Line Hardwares,0.58kg Pole Line Hardwares,35 sqm hot line clamp |
||

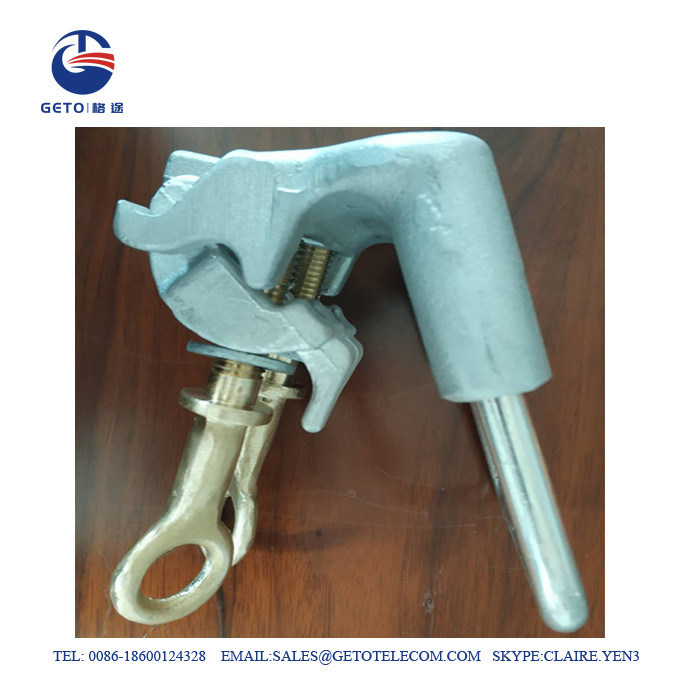

Pole line hardwares Overhead Hotline Bail Clamp
Overview
Hotline Bail Clamp develops vibration proof connection on aluminum or ACSR conductor. yestem is at 30º angle from the stirrup. It covers conductor range from 35~70/ 70-185 sqm.
Feature
| Bolt Installation Torque (Recommended) | 0 ft-lbs |
| Hot Stick Eyes | Yes |
| Inhibitor Loaded | Yes |
| Material - Bail | Tinned Copper |
| Material - Body | Aluminum |
| Material - Eyestem | Bronze |
| Material - Keeper | Aluminum Alloy |
| Material - Spring (on Eyestem) | 304 Stainless Steel |
| Material - Stirrup | Copper |
| Material - Washer | 304 Stainless Steel |
| Number of Eyebolts | 1 |
| Type | Stirrups |
