Product Details:
|
Product Name: | GYFTY Optical Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 4-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Highlight: | GYFTY Duct Fiber Optic Cable,ITU Duct Fiber Optic Cable,1000m armored fiber patch cable |

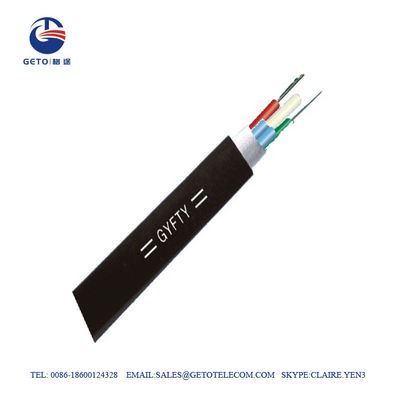

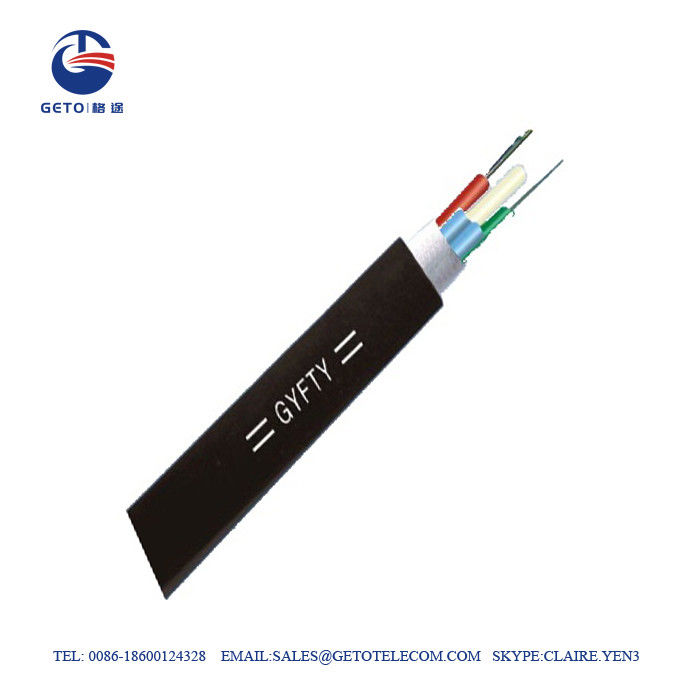

High-voltage Long Distance Aerial Duct Optical Fiber Cable
Description
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use. We supply both single mode GYFTY cable and multimode GYFTY cables.
Feature
Specification
Structure parameters: | Structure | Nominal diameter(mm) | Nominal weight(kg/km) | Permitted tensile (N) |
Permitted crush(N) | Bend Radius(mm) |
2-36 | 1+6 | 8.6 | 60 | 600/1500 | 300/1000 | 10D/20D |
38-72 | 1+6 | 9.3 | 68 | 600/1500 | 300/1000 | 10D/20D |
74-84 | 1+7 | 10 | 82 | 600/1500 | 300/1000 | 10D/20D |
86-96 | 1+8 | 10.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
98-108 | 1+9 | 11.4 | 103 | 600/1500 | 300/1000 | 10D/20D |
110-120 | 1+10 | 12 | 114 | 600/1500 | 300/1000 | 10D/20D |
122-132 | 1+11 | 12.6 | 125 | 600/1500 | 300/1000 | 10D/20D |
134-144 | 1+12 | 13.3 | 138 | 600/1500 | 300/1000 | 10D/20D |
146-216 | 1+6+12 | 13.8 | 149 | 600/1500 | 300/1000 | 10D/20D |
218-288 | 1+9+15 | 15.5 | 195 | 600/1500 | 300/1000 | 10D/20D |
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
