Product Details:
|
Product Name: | ADSS Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
---|---|---|---|
Fiber Core: | 4-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Highlight: | 6562ft ADSS Fiber Optic Cable,SM ADSS Fiber Optic Cable,OM4 fibre optic cable |
48 Cores Double Sheath SM ADSS Fiber Optic Cable
Description

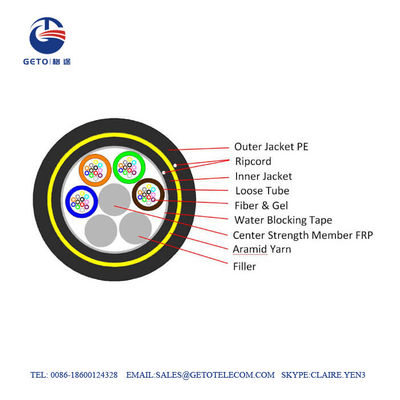

The All Dielectric Self-supporting (ADSS) Optical Fiber Cable is loose tube stranded Fiber cable, which is positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Characteristics
1.Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication ;
2.Track-Resistant outer jacket available for the high voltage;
3.Line where space potentials up to 35kv;
4.Gel-Filled buffer tubes are S-Z stranded;
5.Aramid yarn is used as the strength member to assure the tensile and strain performance for mini span (usually below 100 meters) ;
6.The fiber counts from 4-288 fibers.
Specification
Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
Attenuation Of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
Attenuation Of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
Structure parameters: | |||||||
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) |
CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable weight (kg/km) |
4 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 80 |
6 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
8 | 1+6 | 4 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
12 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 81 |
24 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
36 | 1+6 | 6 | 2.0±0.1 | 2.3/2.3 | 1.7±0.1 | 10.5±0.5 | 83 |
48 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 97 |
72 | 1+6 | 12 | 2.2±0.1 | 2.6/2.6 | 1.7±0.1 | 11.3±0.5 | 98 |
96 | 1+8 | 12 | 2.2±0.1 | 3.0/3.9 | 1.7±0.1 | 12.5±0.5 | 122 |
Cable Type | Drum | ||||
Height(mm) | Width (mm) | Inner Diameter (mm) | Length (Km) | Drum Type | |
ADSS-4 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-6 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-8 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-12 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-24 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-36 | 900 | 760 | 500 | 2 | Plywood wood drum |
ADSS-48 | 950 | 760 | 500 | 2 | Plywood wood drum |
ADSS-72 | 950 | 760 | 500 | 2 | Plywood wood drum |
ADSS-96 | 1200 | 760 | 650 | 2 | Plywood wood drum |
