Product Details:
|
| Product Name: | Aerial Drop Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-96 Cores | Application: | Self Supporting Outdoor Fiber Optic Cable |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description

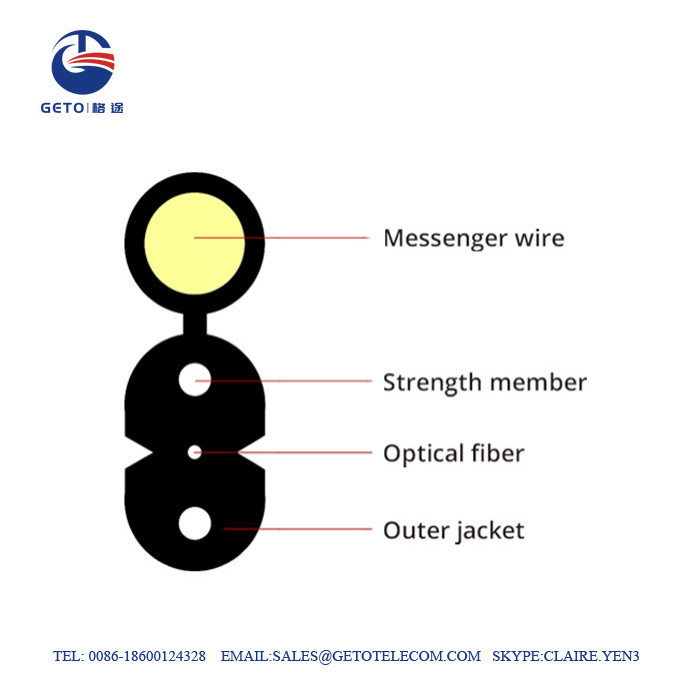

GJYXFCH/GJYXCH Aerial drop cable is the novel user access optical cable which combines the characteristics of the indoor soft optical cable and the self-supporting optical cable together, the butterfly optical cable is the best alternative choice for solving the problems of FTTX network and plays the unique role in building networks, such as the intelligent building, the digital district, the campus network and the local area network.
Characteristics
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meet the requirements of relevant standards;
· The mechanical characteristics of jacket meet the requirements of relevant standards;
· Soft, flexible, easy to lay and splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Specification
| Item | Parameters | |||
| Fiber | Color | Natural color | All colors display | |
| Number of cores | 1 | 2 | 4 | |
|
Strength member |
Material | Phosphating steel wire | ||
| Diameter (mm) | 0.45 | |||
| Outer jacket | Material | LSZH Oxygen index≥25%) | ||
| Color | White | |||
| Cable diameter(mm) | 2.0±0.1*3.0±0.1 | |||
|
Min. bending radius |
Static | 15mm | ||
| Dynamic | 30mm | |||
| Tensile performance | Short term | 200N | ||
|
Crush |
Short term | 2200N/100mm | ||
