Product Details:
|
| Product Name: | Single Mode And Multimode Fiber Optic Cable | Fiber Type: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 |
|---|---|---|---|
| Fiber Core: | 2-12 Cores | Application: | Used For Duct Or Aerial Applications |
| Armored: | Yes | Operating Temperature: | -40℃ To + 70℃ |
| Out Sheath: | Black Polyethylene (PE) | Packing: | 1km/2km/4km/roll |
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH |
| Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect | Strength Member: | Steel Wire, Metallic Wire, FRP |
Description:

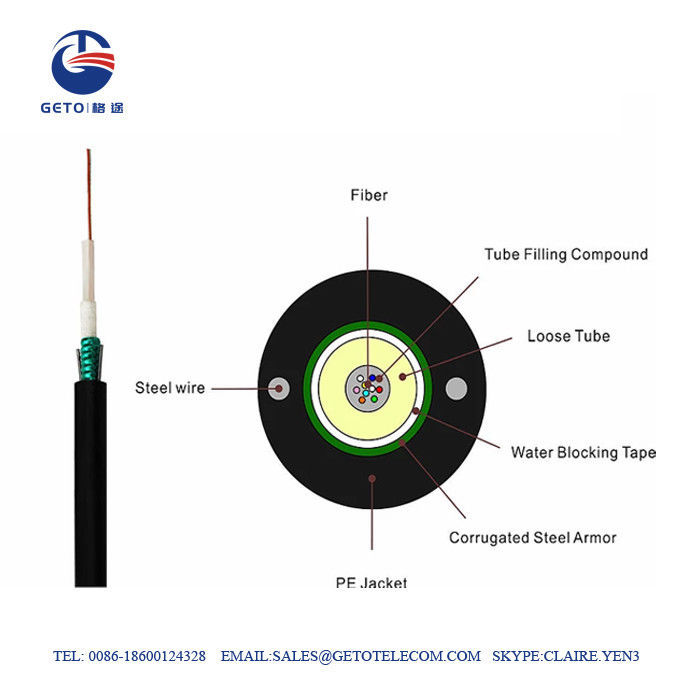

GYXTW optic fiber cable is Steel-polyethylene bonded sheathed cable for outdoor communication, metal reinforcing members, center tube, fully filled, parallel steel wire
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Crush resistance and flexibility.
Special tube filling compound ensure a critical protection of fiber.
PSP enhancing moisture-proof.
Two parallel steel wires ensure tensile strength
| Fiber count | Structure | Fibers/ tube | Loose tube diameter (mm) |
Wire diameter (mm) |
Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 2 | Unitube | 2 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 4 | Unitube | 4 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 6 | Unitube | 6 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 8 | Unitube | 8 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 10 | Unitube | 10 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| 12 | Unitube | 12 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Natural color | |
| Armoured | Material | Plastic coated steel strip |
| Reinforced pieces | Material | Phosphating steel wire |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Tensile performance | Short term | 1500N |
| Crush | Short term | 1000N/100mm |
Specification
GYTS (loose tuber-stranding,metal strength member, flooding jelly compound, steel-polyethylene adhesive sheath)
Standards:
YD/T901-2009 outdoor layer stranded optical cable for telecommunications.
Note: 1. D refers to the cable diameter;
3. The block water way can be adjusted according to the customer’s demands;
4. The design flame resistance,anti-rodent,termite resistant cable according to the customer’s demands.
