Product Details:
|
| Product Name: | FTTh Drop Clamp | Breaking Force: | 200N |
|---|---|---|---|
| Material: | Carbon Steel | Application: | Strand Drop Cable |
| Weight: | 0.125 KGS | Standard Or Nonstandard: | Standard |
| Customade: | Available | Status: | New |
| High Light: | FTTH Fiber Drop Wire Clamp,200N Fiber Drop Wire Clamp,FTTH small hook clamps |
||

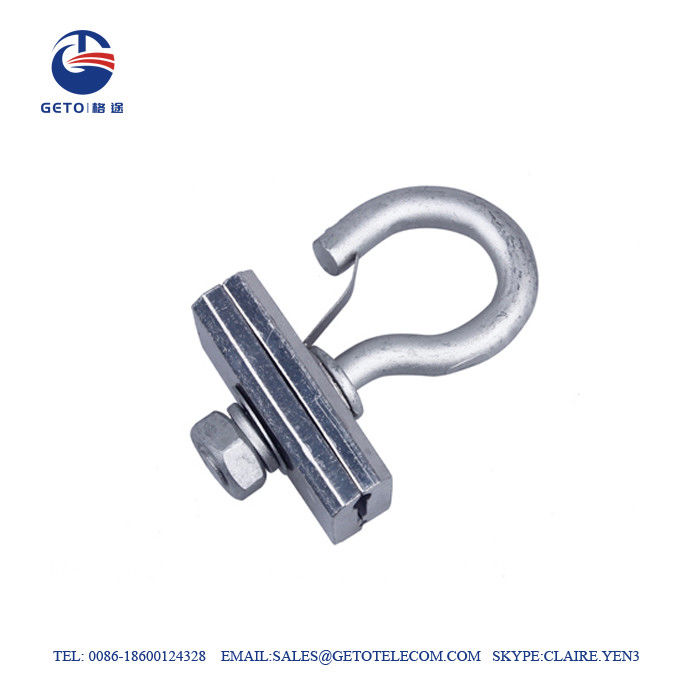

Drop Cable Anchor Clamp Metal Splint Span Retractor
Description
Span Clamp Splint Hook / Splint Retractor is confined on the steel strand and is connected with the S type fixing piece to fix the optical cable.
Feature
1. The body is made of Galvanized steel
2. Easy to install and operate
3. The Pigtail Wall Clamp fixture is used to support Cable Clamp on building facade.
Specification
| Name | Dimension (mm) | Material | Using Scope |
| Splint Retractor | 50x31.5x80 | Q235 carbon steel+ al uminum alloy |
strand wire 2x0.7/ 2.2x0.7 |
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Installation
1-Position Clamping plates on top of messenger strand.
2-Tighten clamping nut.
3-Insert drop wire, drop wire clamp or wire grip into the hook.
4-Pull drop wire against the hook toward the area where service is being installed
