Product Details:
|
| Product Name: | Drop Wire Clamp | Cable Size: | 2-5mm |
|---|---|---|---|
| Breaking Force: | 200N | Macarbon Steel/201 Stainless Steelterial: | Nylon+201 Stainless Steel |
| Application: | Provide Tension For Dorp/telephone Cable | Weight: | 0.046kgs |
| Standard Or Nonstandard: | Standard | Customade: | Available |
| Status: | New | ||
| High Light: | 5mm Aerial Drop Wire Clamps,SS201 Aerial Drop Wire Clamps,200N stainless steel wire clamps |
||
Description

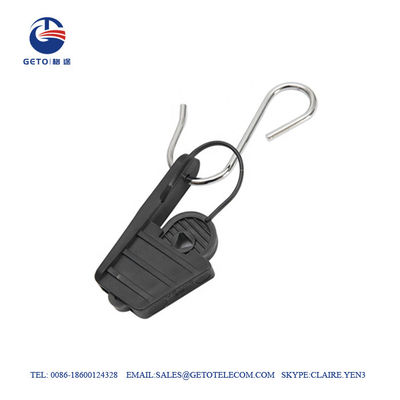

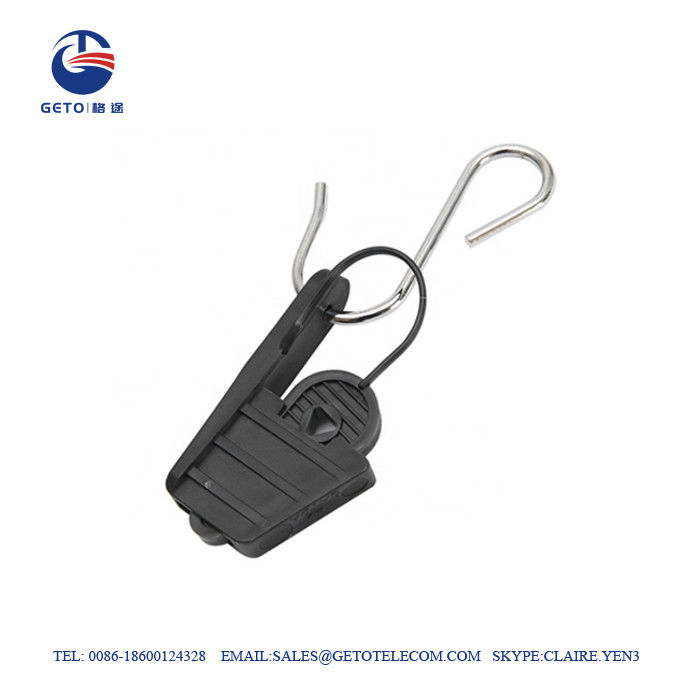

DWC Drop cable clamp ( s type drop cable clamp) is made of high quality nylon and usually installed with s-type hook. The placement of slots and a hole in the clamp’s inner wedges allow for proper cable slack adjustment, tensioning and assistance with re-entry.
Feature
1) Unique hook and wedge lock design.
2) Easy cable slack adjustment to apply proper tension.
3) Can be re-entered and reused.
4) Weather and corrosion resistant Nylon body.
5) SS201 hook for maximum corrosion resistance.
6) No special tools required for installation.
7) No loose parts - wedge is tethered to clamp body.
8) Can withstand the rigors of all environmental conditions.
Specification
| Name | Material | Cable Diameter (mm) | Breaking Force (kN) |
| DWC Drop Wire Clamp | PA66 nylon + Stainless steel hook | 9.8mm width 2-8mm thickness |
1 |
Application
Drop attachment can be used on buildings, poles, strand with drive hooks, pole brackets, ss hooks and other drop wire fittings and hardware.
