H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

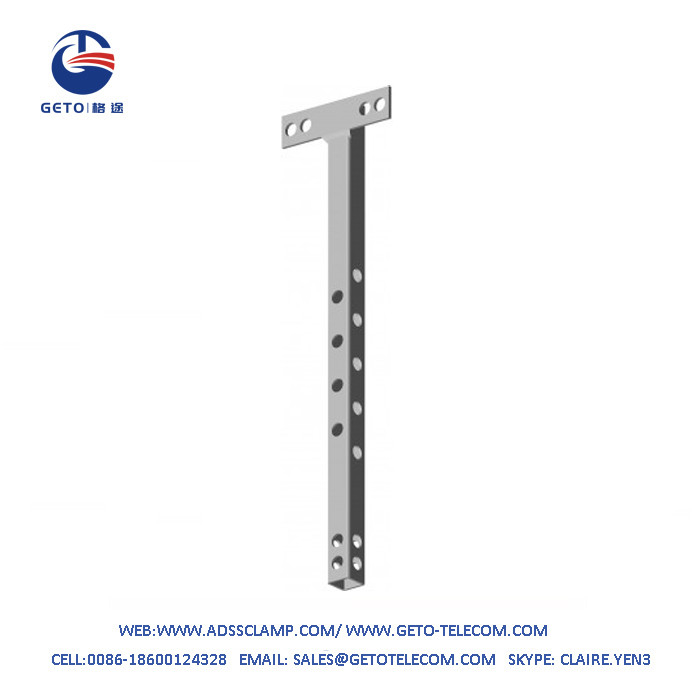

Large Image : H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

Product Details:

Place of Origin:	China
Brand Name:	Geto Telecom
Certification:	ISO 9001:2015
Model Number:	CT24

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	4.2-5USD
Packaging Details:	Carton + Woven Bag + Pallet
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	500 PCS/Day

Contact Now

H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

Description

Name:	Extension Bracket	Material:	Hot Dip Galvanized Steel
Application:	Outdoor	Weight:	1.32 KGS
Standard Or Nonstandard:	Standard	Customade:	Available
Status:	New	Installation Method:	Bolt And Nut Or Stainless Steel Band
Lead Time:	10-15 Days	OEM/ODM:	Accept
Warranty:	2 Year
High Light:	1.32 KGS Weight Pole Bracket , H.D.G Extension bracket , Square Tube Tubular Extension bracket

Feature

Extension bracket square tube is engineered to mount on wooden, metal or composite poles but also on posts or telecom masts.

this tubular extension can be installed either at the opposite side of the copper pole line hardware or sideways, depending on how loaded the pole is already.

Different fixing methods are possible: pole head and coupling bolt, lag screw 100mm or 80mm, pole band, pole bracket, nut or curved plate. The securing method must be selected by considering the pole type (wooden, metal or composite). the mounting point (opposite or sideways) the possibility to drill holes into the pole or the existence of pre-drilled ones.

The top of the universal extension bracket square tube presents a plate on which a cross-arm with 5, 11 or 13 holes can be mounted by using 2 assembly bolts 1/12.

Features & benefits

Enables to off-load telecom poles

mounts on all types of telecom poles or posts: wooden, metal or composite

Welded plate equipped with inferior holes enabling double anchoring applications in alignment with holes used for the cross-arm mounting

Mounts on pre-drilled poles or with pole band, at the opposite side or sideways of telecom network already in place.

Material: galvanized steel

Dimensions(mm): 500x115x30
