Product Details:
|
Product Name: | Wedge Type Insulation Cable Tension Clamp | Breaking Force: | 12KN |
---|---|---|---|
Cable Size: | 8-15mm | Application: | Fixing ADSS Cable FTTH |
Material: | Nylon + Steel | Sample: | Ok |
Standard Or Nonstandard:: | Standard | Customade: | Available |
Status: | New | ||
Highlight: | 15mm FTTH ADSS Cable Clamp,Deployment Wedge ADSS Cable Clamp,Insulation ADSS Cable Tension Clamp |
Overview

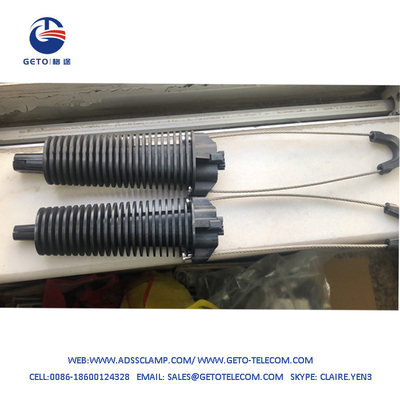

FTTH Deployment Wedge Type Insulation Cable Tension Clamp is self-adjusting, designed to anchor ADSS optical fiber cable transmission lines. it consists of self-adjusting plastic wedges, which clamp the optical cable without damaging. Wide range of gripping capacities and mechanical resistance archived by wide product range and different models of ADSS anchor clamps.
suit for ADSS overhead line cable, it has good grip strength, the steel bail length could be customize enable the dead-ending on cross-arms or pole brackets of aerial fiber optic cables with ADSS structure Ø 8 to 15mm, with HDPE insulation on distribution networks up to 90m spans.
Feature
1, Tools-free cable clamp installation
2, The clamp consists of self-adjusting plastic wedges, which clamp the optical cable without damaging.
3, Installation on any pole hardware fitting: brackets, cross-arms or eye bolt with a min eye of diameter 15mm
4, High Breaking Force
5, Plastic block protect bail from abrasion
6, intensive bump ensure strong grip strength
7, Anti-rust stainless steel bail
8, Special slot ensure stability of inner core
9, Arc design undertake firm fixing of bail
