Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent

Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent
Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent

Large Image :  Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001: 2015
Model Number: PDE
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: 0.85
Packaging Details: Carton + Pallet
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 5000 Set

Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent

Description
Product Name: Tangent Suspesion Clamp Cable Size: 6-20mm
Material: Galvanized Steel Usage: Suspension The Fiber
Customize: Yes Sample: Free Sample Available
Standard Or Nonstandard: Standard Weight: 0.2 Kgs
High Light:

Fiber Tagent Suspension Clamp

,

Tangent Suspesion Clamp

,

ADSS Suspension Clamp 20mm



Preformed tangent clamp specification

1.High strength
2.Good corrosion resistance
3.Simple installation
4.Easy to ensure installation quality





Description

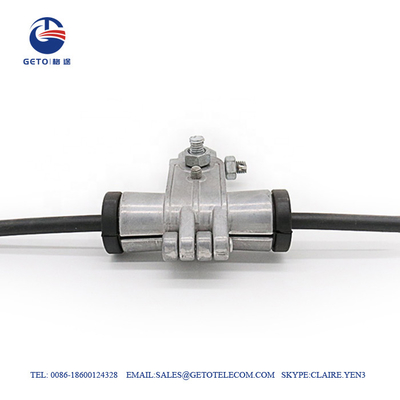

Tangent clamp is a kind of linear suspension clamp. It is mainly used to provide light, simple and low cost protection and installation clamp for small span overhead optical cable, especially suitable for the construction and transformation of urban communication network. It is mainly applicable to the installation of optical cables on short span straight towers or towers with angle less than 15 °.



Each set of tangent clamp includes: shell, rubber insert, bolt, nut, washer, etc.

Clamp made of aluminium alloy, preformed wire made of aluminium alloy, U-shackles with screw made of iron steel, Rub insert is Neoprene-RE.



Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent 0





1. Configuration:

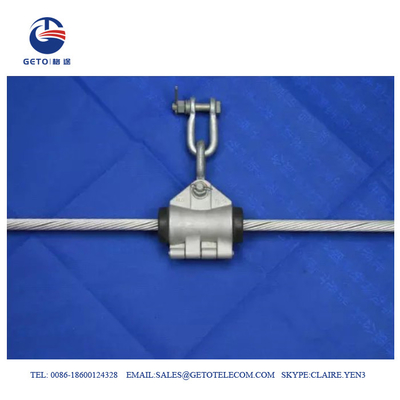

Type 1:

1- Anchor shackle: forged steel

2- Housing: aluminum alloy

3- Rubber insert: synthetic rubber

4- Bolt, nut, cotter pin



Type 2:

1- Stainless steel band(1.2m)

2- Stainless steel base: 1pcs

3- Rubber insert : synthetic rubber

4- Housing: aluminum alloy

5- Bolt, nut, washer, spring washer: 1set



Deployment ADSS Suspension Clamp 20mm Of Optical Fiber Tagent 1



2. Features:

Simple structures, easy installation, and lower cost.





3. Technical Data:

RTS: greater than 20kN

Recommended span length: 100m



Product Model Cable Diameter (mm) Armor Rods (mm) Anchor Shackle
AQX 100-12 9.0-12 0 U-5
AQX 100-14 12-14 0 U-5
AQX 100-16 14-16 0 U-5
AQX 100-18 16-18 0 U-5
