Product Details:
|
| Product Name: | Suspension Clamp Round/flat Cables | Cable Size: | 2-8mm |
|---|---|---|---|
| Breaking Force: | 1KN | Material: | Plastic |
| Application: | Round Or Flat Drop Cables Ø 2 To 8mm | Standard Or Nonstandard: | Standard |
| Customade: | Available | Status: | New |
| Highlight: | Suspension Clamp Round Flat Cables,6mm Suspension Clamp,Plastic ADSS Suspension Clamp |
||
Advantages of suspension Clamp
Lightweight, cost-efficient and compact design
A comprehensive range compatible with all cables with Ø from 2 to 8mm
Installation within a couple of seconds, requiring no tools
Mounting on all pole line hardware with closed eye and min. Ø 11mm
Mobile suspension clamps offer an increased cable protection against aeolian vibrations

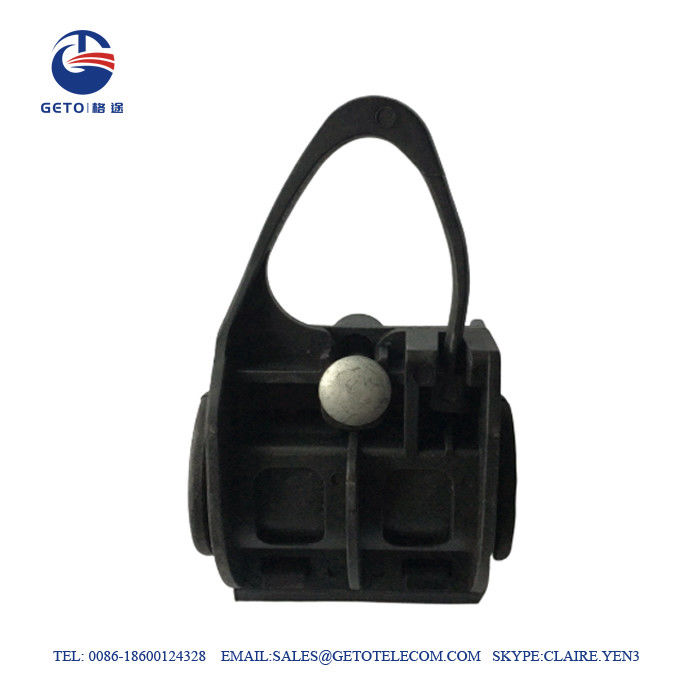

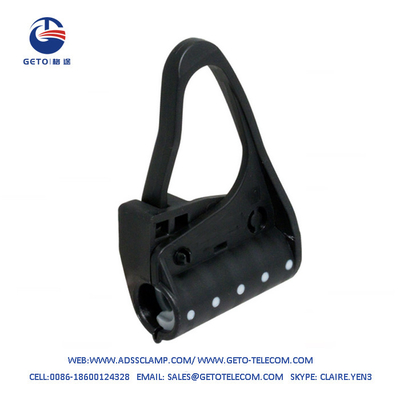

Suspension clamps are designed with a hinged plastic shell equipped with an elastomer protective insert and an opening bail. The clamp's body locks with 2 built-in clips, while the integrated cable tie allows to secure the clamp once closed.
Compact suspension clamp are used for enabling mobile suspension of round or flat drop cables Ø 2 to 8mm on intermediate poles used for distribution networks with spans up to 70m. For angles superior to 20°, it is recommended to install a double anchor.
