Product Details:
|
Product Name: | Compact Suspension Clamp | Cable Size: | 2-8mm |
---|---|---|---|
Breaking Force: | 1KN | Material: | Plastic |
Application: | Round Or Flat Drop Cables Ø 2 To 8mm | Standard Or Nonstandard: | Standard |
Customade: | Available | Status: | New |
High Light: | Short Span Suspension Clamp,1KN Plastic Suspension Clamp,ADSS Suspension Clamp Drop Cables |
Overview
Compact suspension clamp are used for enabling mobile suspension of round or flat drop cables Ø 2 to 8mm on intermediate poles used for distribution networks with spans up to 70m. For angles superior to 20°, it is recommended to install a double anchor.

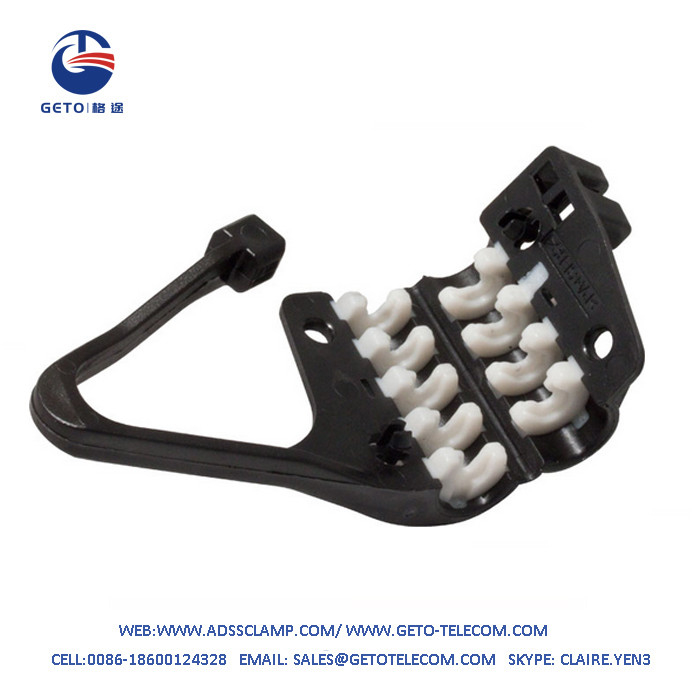

Suspension clamps are designed with a hinged plastic shell equipped with an elastomer protective insert and an opening bail. The clamp's body locks with 2 built-in clips, while the integrated cable tie allows to secure the clamp once closed.
Lightweight, cost-efficient and compact design
A comprehensive range compatible with all cables with Ø from 2 to 8mm
Installation within a couple of seconds, requiring no tools
Mounting on all pole line hardware with closed eye and min. Ø 11mm
Mobile suspension clamps offer an increased cable protection against aeolian vibrations
