Product Details:
|
| Material: | Nylon+steel | Breaking Force: | 2KN |
|---|---|---|---|
| Cable Size: | 2*16-4*35 Mm² | Name: | 2 And 4 Cores Anchor Clamp |
| Sample: | Free Sample Available | Standard Or Nonstandard: | Standard |
| Customade: | Available | Status: | New |
| Span Lenght: | Less Than 100M | ||
| High Light: | Service Anchoring Clamp,4 cores Anchor ADSS Cable clamp,25mm2 ADSS Cable Clamp |
||
Overview

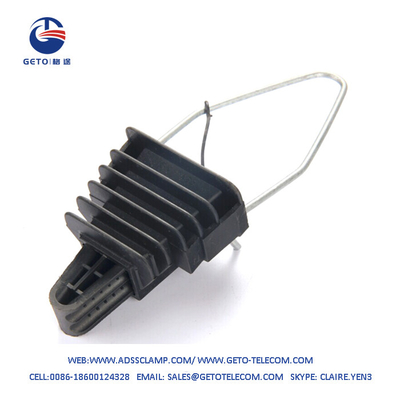

Service Anchoring Clamp PA 25 2/4x10-25mm2 is used for network connection when cross sections of LV ABC of section 2 x 16 mm² up to 4 x 25 mm². It can be installed by hooks or bracket.
Feature
It is made of high quality polymer which resistance to environmental effects and UV radiation.
Inside canals are cogged so that they have excellent mechanical contact with conductor's insulation thus disabling slippage.
Minimum breaking force is 2 kN.
Tool free installation with wedges sliding inside the body
Easy to open bail permits fixing to brackets and pigtails
Bail can be hot-dip galvanized or stainless steel.
