Product Details:
|
Material: | Nylon+steel | Breaking Force: | 2KN |
---|---|---|---|
Cable Size: | 2*16-4*35 Mm² | Name: | 2 And 4 Cores Anchor Clamp |
Sample: | Free Sample Available | Standard Or Nonstandard: | Standard |
Customade: | Available | Status: | New |
Span Lenght: | Less Than 100M | ||
Highlight: | Cable Wedge Anchor Clamp,2KN Cable Clamp,LV ABC Cable Clamp |
Overview

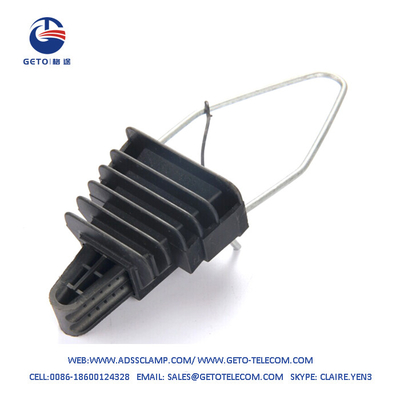

PA25 Anchor clamps are designed for anchoring two or four self-supporting insulated subscriber wires. The range of cross-sections of conductors used has increased and ranges from 2x16 mm2 to 4x35 mm2. The special relief of the surface of the wedges ensures reliable fixation of the conductor, preventing it from slipping out without damaging the wire insulation. All parts are made of UV and weather resistant polymers.
Feature
It is made of high quality polymer which resistance to environmental effects and UV radiation.
Inside canals are cogged so that they have excellent mechanical contact with conductor's insulation thus disabling slippage.
Minimum breaking force is 2 kN.
Tool free installation with wedges sliding inside the body
Easy to open bail permits fixing to brackets and pigtails
Bail can be hot-dip galvanized or stainless steel.
