Product Details:
|
| Material: | Aluminum+Steel | Breaking Force: | 20 KN |
|---|---|---|---|
| Cable Size: | 4x25-50mm² | Name: | 2 And 4 Cores Anchor Clamp |
| Sample: | Free Sample Available | Standard Or Nonstandard: | Standard |
| Customade: | Available | Status: | New |
| Span Lenght: | Less Than 100M | ||
| High Light: | ADSS Aerial Cable Clamp,50mm² Aerial cable,Wedge Tension Anchor clamp |
||

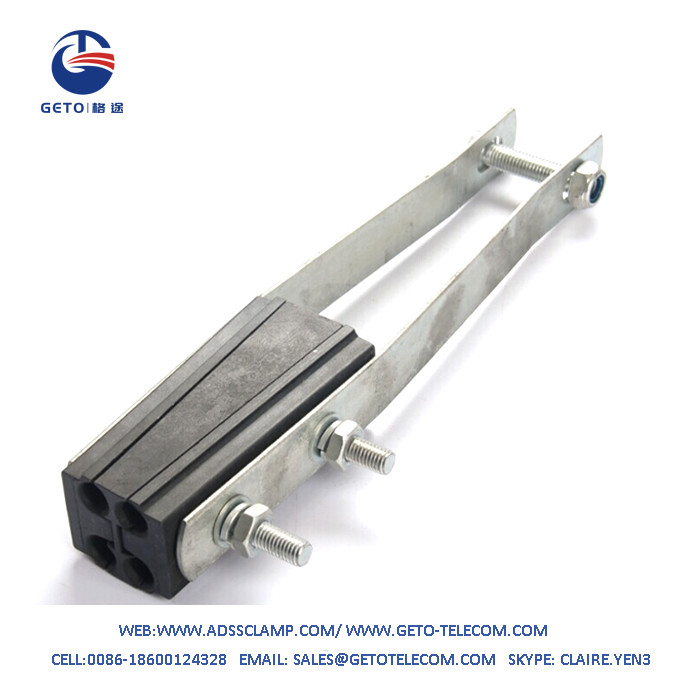

4x25-50mm² Aerial cable 20Kn Wedge Tension Anchor clamp
Overview
4x25-50mm² Anchor Clamp is made of hot dip galvanized steel and a weather and UV resistant polymer reinforced with a glass fiber structure. It is designed for fastening a self-supporting SIP system with 2 and 4 cores.
Feature
Additional lighting wires (if any) are routed along the clamp.
The wedge-type clamping part is self-adjusting.
The wedges are easy to move apart thanks to the spring, which facilitates the installation of wires.
A special modification with movable jaws facilitates the installation of wires into wedges.
The clamp is attached to the hooks of the supports using a single M12 bolt and a self-locking nut.
Small length - about 320 mm.
