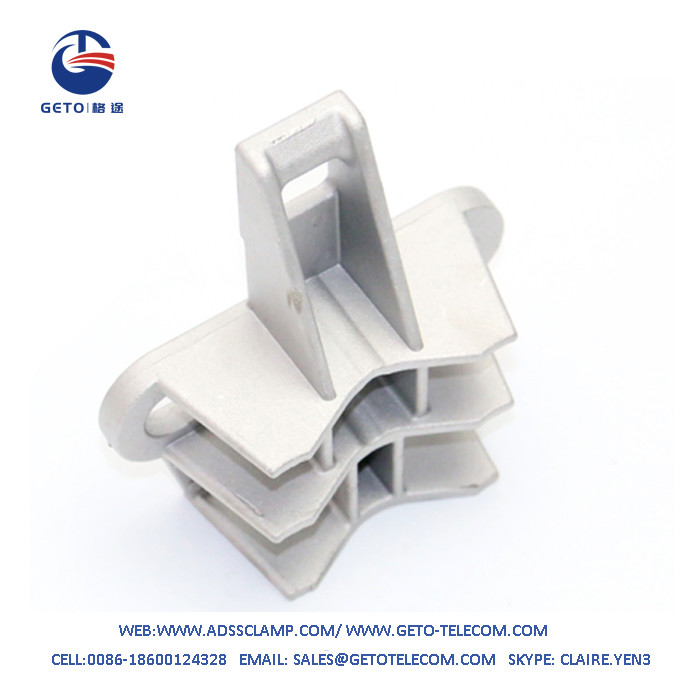

Hardware Aerial Network Universal Pole Bracket ADSS FTTH

Hardware Aerial Network Universal Pole Bracket ADSS FTTH
Hardware Aerial Network Universal Pole Bracket ADSS FTTH
Hardware Aerial Network Universal Pole Bracket ADSS FTTH Hardware Aerial Network Universal Pole Bracket ADSS FTTH

Large Image :  Hardware Aerial Network Universal Pole Bracket ADSS FTTH

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001:2015
Model Number: UPB
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 1.3
Packaging Details: Carton + Woven Bag + Pallet
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 5000PCS/Day
Contact Now

Hardware Aerial Network Universal Pole Bracket ADSS FTTH

Description
Name: Universal Pole Bracket Breaking Force: 13Kn
Material: Aluminum Application: Fitting For Pole
Weight: 0.2 KGS Standard Or Nonstandard: Standard
Customade: Available Status: New
High Light:

13Kn Universal Pole Bracket

,

Aluminum UPB Universal Bracket

,

Aluminum Pole Mount Bracket

Hardware Aerial Network Universal bracket ADSS FTTH


installation guidance:

With pole band: the UPB universal bracket fixes on all type of poles, drilled or undrilled, by using two pole bands of 20mm width SB204or SB207 and two buckles B20 or two clevis fasteners A20. On average, two meters of pole band are recquired per bracket. The choice of the pole band's thickness depends on the required resistance and on the loads to which the bracket is submitted.

With bolt: if the pole head is drilled (wooden, sometimes concrete) the universal pole bracket UPB can also be mounted with a cross-through bolt Ø 14 or 16mm. The bolts's length is then proportional to the pole head's diameter + 42mm (the bracket's thickness).


Hardware Aerial Network Universal Pole Bracket ADSS FTTH 0
The UPB universal bracket is a pole hardware made of aluminum alloy offering high mechanical properties. Its unique design has been engineered so to offer an universal pole hardware solution able to adapt to all cable installation configurations on wooden, concrete or metal poles:
Cable unroll on pulley
Stay wire
Cross-arm mounting
Drop connection
Dead-ending
Junction points
Angled passageways
Derivation points

Hardware Aerial Network Universal Pole Bracket ADSS FTTH 1
