Product Details:
|
Material: | Aluminum | Cable Size: | 16-300sqm |
---|---|---|---|
Product Name: | Aluminum PG Clamp | Application: | Connect Two Parallel Bare Conductors |
Sample: | Free | Customize: | Available |
Standard Or NonStandard: | Standard | ||
Highlight: | 16spm Parallel Groove Clamp,Aluminum Parallel Groove Clamp,APG parallel groove connector |

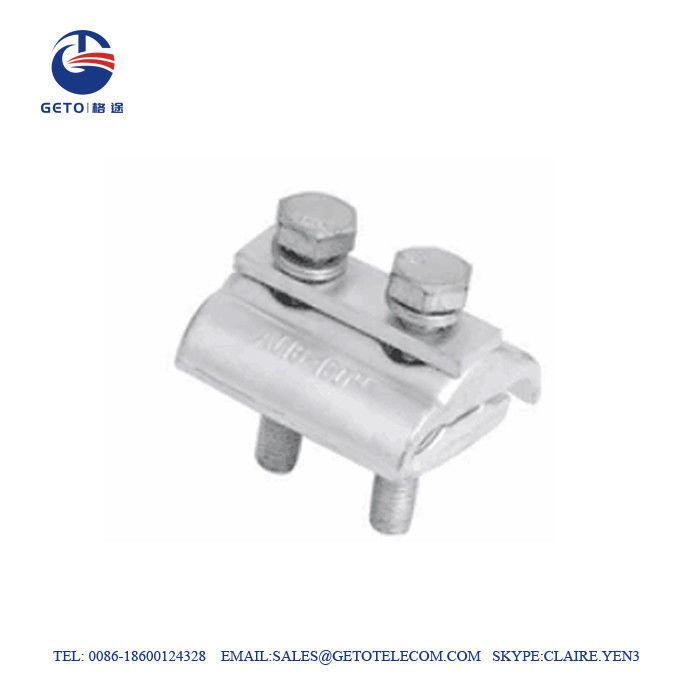

Aluminum PG Clamp Mains Branch Connectors
Description
Aluminum PG Clamp is applicable to the connection of aluminum conductor, all aluminum conductor and steel core aluminum strand.
Feature
1) Easy installation good conductivity
2) Forging process creates a high strength performance
3) Slotted holes allow adjusting for varying conductors on each side
4) high strength corrosion resistant Al-Alloy
5) Oxide inhibitor in contact surfaces avoid oxidation
6) Serrated transverse grooves for maximum conductor contact
7) Insulating covers is select-able for protection and insulation
Specification
Type | Conductor cross section(mm2) | Bolt Size |
APG-A1 | Al 16-70 | 1xM8x40 |
APG-A2 | Al 16-150 | 1xM8x45 |
APG-B1 | Al 16-70 | 2xM8x45 |
APG-B2 | Al 16-150 | 2xM8x40 |
APG-B3 | Al 25-240 | 2xM8x50 |
APG-C1 | Al 16-70 | 3xM8x45 |
APG-C2 | Al 16-150 | 3xM8x50 |
APG-C3 | Al 25-240 | 3xM10x60 |
APG-C4 | Al 35-300 | 3xM10x70 |
Application
mains branch connectors used for tap-off Al-alloy conductors
