Product Details:
|
| Product Name: | Helical Suspension Set | Cable Size: | 6-20mm |
|---|---|---|---|
| Material: | Galvanized Steel | Usage: | Suspension The Fiber |
| Customize: | Yes | Sample: | Free Sample Available |
| Standard Or Nonstandard: | Standard | Weight: | 0.2 Kgs |
| Highlight: | 20mm Armor Rod,6mm Armor Rod,PDE armour rod |
||

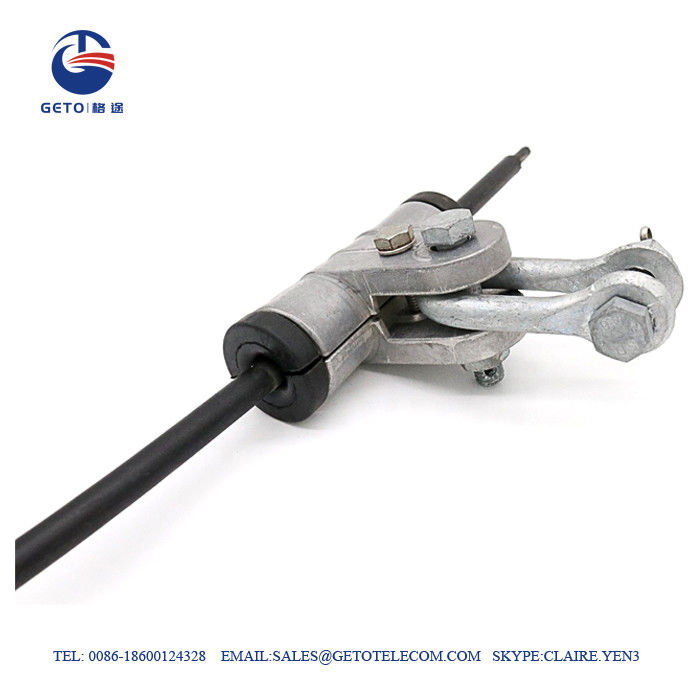

Short Span Fiber ADSS Drop Cable Helical Suspension Set
Description
Tangent Suspension clamp for ADSS Users can choose other connectors according to the design, such as U-ring, right angle hanging ring And so on. It include less than 100m span tangent suspension clamp and 100m-200m span’s tangent suspension clamp.
1. Configuration:
Type 1:
1- Anchor shackle: forged steel
2- Housing: aluminum alloy
3- Rubber insert: synthetic rubber
4- Bolt, nut, cotter pin
Type 2:
1- Stainless steel band(1.2m)
2- Stainless steel base: 1pcs
3- Rubber insert : synthetic rubber
4- Housing: aluminum alloy
5- Bolt, nut, washer, spring washer: 1set
2. Features:
Simple structures, easy installation, and lower cost.
3. Technical Data:
RTS: greater than 20kN
Recommended span length: 100m
| Product Model | Cable Diameter (mm) | Armor Rods (mm) | Anchor Shackle |
| AQX 100-12 | 9.0-12 | 0 | U-5 |
| AQX 100-14 | 12-14 | 0 | U-5 |
| AQX 100-16 | 14-16 | 0 | U-5 |
| AQX 100-18 | 16-18 | 0 | U-5 |
