Product Details:
|
Product Name: | Preformed Tangent Suspension Set | Cable Size: | 6-20mm |
---|---|---|---|
Material: | Galvanized Steel | Usage: | Suspension The Fiber |
Customize: | Yes | Sample: | Free Sample Available |
Standard Or Nonstandard: | Standard | Weight: | 0.2 Kgs |
Highlight: | Standard Preformed Armor Rod,ISO9001 Preformed Armor Rod,PDE rod to cable clamp |

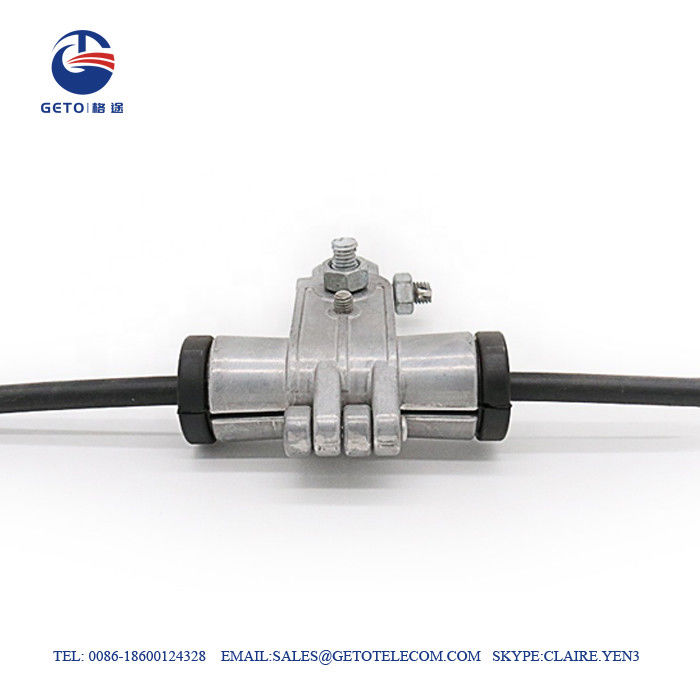

ADSS Hardware Accessories Preformed Tangent Suspension Set
Description
Tangent clamp is mainly used to provide protection and installation for small span overhead optical cable. Each set of tangent clamp includes: shell, rubber insert, bolt, nut, washer, etc.
Clamp made of aluminium alloy, preformed wire made of aluminium alloy, U-shackles with screw made of iron steel, Rub insert is Neoprene-RE.
1. Configuration:
Type 1:
1- Anchor shackle: forged steel
2- Housing: aluminum alloy
3- Rubber insert: synthetic rubber
4- Bolt, nut, cotter pin
Type 2:
1- Stainless steel band(1.2m)
2- Stainless steel base: 1pcs
3- Rubber insert : synthetic rubber
4- Housing: aluminum alloy
5- Bolt, nut, washer, spring washer: 1set
2. Features:
Simple structures, easy installation, and lower cost.
3. Technical Data:
RTS: greater than 20kN
Recommended span length: 100m
Product Model | Cable Diameter (mm) | Armor Rods (mm) | Anchor Shackle |
AQX 100-12 | 9.0-12 | 0 | U-5 |
AQX 100-14 | 12-14 | 0 | U-5 |
AQX 100-16 | 14-16 | 0 | U-5 |
AQX 100-18 | 16-18 | 0 | U-5 |
