Product Details:
|
| Product Name: | Preformed Tangent Suspesion Clamp | Cable Size: | 6-20mm |
|---|---|---|---|
| Material: | Galvanized Steel | Usage: | Suspension The Fiber |
| Customize: | Yes | Sample: | Free Sample Available |
| Standard Or Nonstandard: | Standard | Weight: | 0.2 Kgs |
| High Light: | ADSS Tangent Clamp,20mm Tangent Clamp,PDE linear clamp |
||

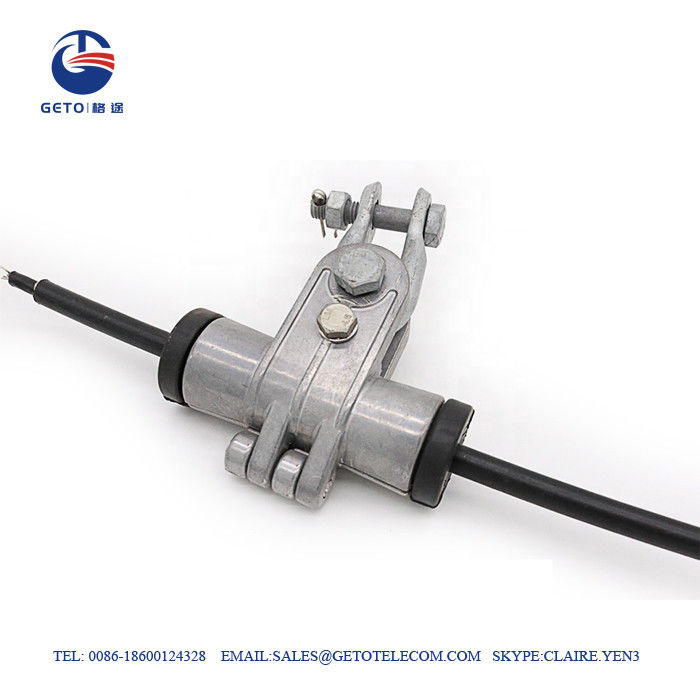

ADSS Preformed Tangent Suspesion Clamp Preformed Armor Rod
Description
Tangent clamp is a kind of linear suspension clamp. It is mainly used to provide light, simple and low cost protection and installation clamp for small span overhead optical cable, especially suitable for the construction and transformation of urban communication network. It is mainly applicable to the installation of optical cables on short span straight towers or towers with angle less than 15 °.
Each set of tangent clamp includes: shell, rubber insert, bolt, nut, washer, etc.
Clamp made of aluminium alloy, preformed wire made of aluminium alloy, U-shackles with screw made of iron steel, Rub insert is Neoprene-RE.
1. Configuration:
Type 1:
1- Anchor shackle: forged steel
2- Housing: aluminum alloy
3- Rubber insert: synthetic rubber
4- Bolt, nut, cotter pin
Type 2:
1- Stainless steel band(1.2m)
2- Stainless steel base: 1pcs
3- Rubber insert : synthetic rubber
4- Housing: aluminum alloy
5- Bolt, nut, washer, spring washer: 1set
2. Features:
Simple structures, easy installation, and lower cost.
3. Technical Data:
RTS: greater than 20kN
Recommended span length: 100m
| Product Model | Cable Diameter (mm) | Armor Rods (mm) | Anchor Shackle |
| AQX 100-12 | 9.0-12 | 0 | U-5 |
| AQX 100-14 | 12-14 | 0 | U-5 |
| AQX 100-16 | 14-16 | 0 | U-5 |
| AQX 100-18 | 16-18 | 0 | U-5 |
