ISO 9001 20mm PVC ADSS Vibration Dampers

ISO 9001 20mm PVC ADSS Vibration Dampers
ISO 9001 20mm PVC ADSS Vibration Dampers

Large Image :  ISO 9001 20mm PVC ADSS Vibration Dampers

Product Details:
Place of Origin: China
Brand Name: Geto Telecom
Certification: ISO 9001: 2015
Model Number: HR
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: 1.65
Packaging Details: Carton + Woven Bag + Pallet
Delivery Time: 5-8 Days
Payment Terms: L/C, T/T
Supply Ability: 3000 PCS/ Days

ISO 9001 20mm PVC ADSS Vibration Dampers

Description
Product Name: Vibration Damper Cable Size: 6-20mm
Material: PVC Application: Reduces Aeolian Vibration
Weight: 0.43KGS Sample: Free Sample Available
Standard Or Nonstandard: Standard Customade: Available
Status: New
High Light:

0.43KG Vibration Dampers

,

PVC Vibration Dampers

,

6mm Helical Rod

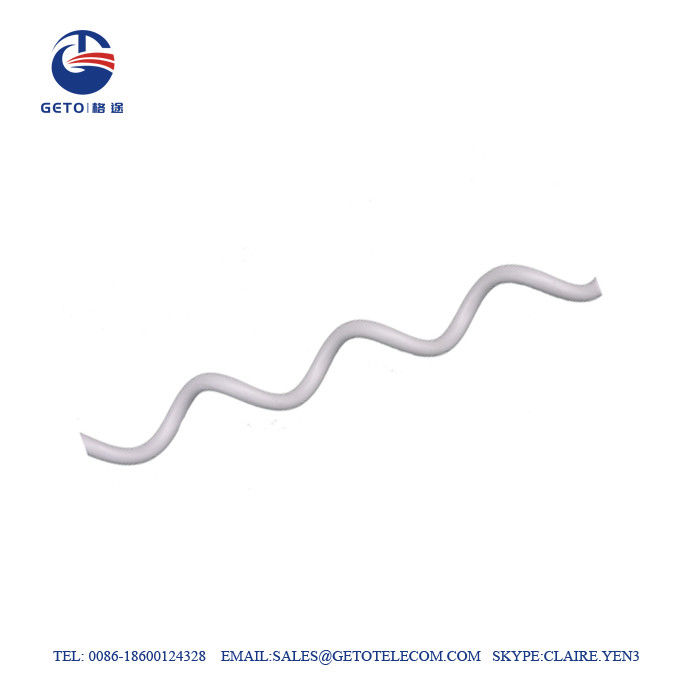

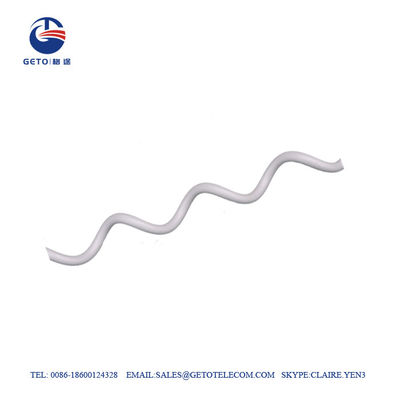

Free Sample 6 - 20 mm PVC Helical Rod for ADSS Vibration Damper





Usage



Helical vibration damper (ADSS vibration dampers) have a helically-formed damping section sized for interplay of damper and cable to provide the action/reaction motion that opposed the natural vibration wave.



A smaller gripping section gently grips the cable so that cable and fiber are not damaged or distorted and there is no optical signal loss. Spiral dampers are recommended for the ADSS cable when the combination of span length and tension indicate by vibration review that external vibration protection is required.







Feature



1. Material of high-strength,antigenic,high-elasticity PVC plastic

2. Simple structure, convenient installation, easy maintenance

3. Installed on ADSS and OPGW cables with diameter less than 12mm

4. Include gripping section and damping section

5. Protect cable from shaking and damping







Specification





Model Suitable Cable Diameter (mm) Gripping Section (mm) Total Length (mm) Color Code
GTSV 0829 125 6.3-8.29 250 1250 Orange
GTSV 1170 130 8.3-11.7 250 1300 Yellow
GTSV 1430 135 11.71-14.3 250 1350 Green
GTSV 1930 165 14.31-19.3 330 1650 Blue









Installation





                               ISO 9001 20mm PVC ADSS Vibration Dampers 0

                                  ISO 9001 20mm PVC ADSS Vibration Dampers 1









Application



                        ISO 9001 20mm PVC ADSS Vibration Dampers 2
