Product Details:
|

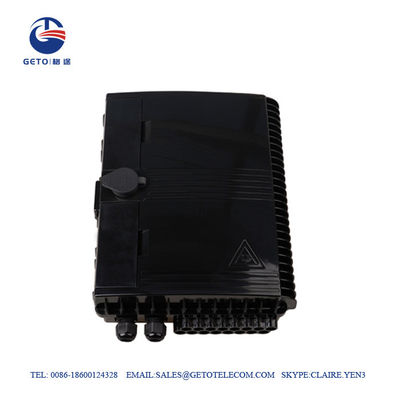

Product Name: | Fiber Optic Faceplate Box | Insulation Resistance: | ≥ 2 * 1020MΩ/500V |
---|---|---|---|
Door Opening Angle: | ≥180 ° | Material: | ABS+PC |
Operating Temperature: | -40~+75℃ | Service: | OEM ODM |
Protection Grade: | IP65 | Adaptor Type: | SC/LC |
Size: | 205*220*55mm | ||
Highlight: | OEM FDB Fiber Distribution Box,ABS Fiber Optic Distribution Box,ABS FDB Fiber Distribution Box |
Description

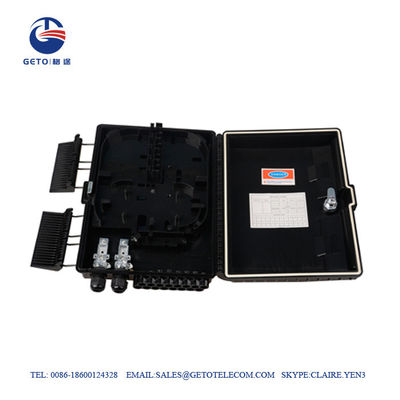

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Material | ABS |
Weight | 0.5kg |
Size | 205*220*55mm |
Operation temperature | -40℃~+60℃ |
Insertion loss | ≤0.2dB |
Life of insertion and extraction | >1000 times |
Service | OEM |
Application | (1)Widely used in FTTH access network (2)Telecommunication Networks (3)CATV Networks (4)Data communications Networks (5)Local Area Networks (6)Indoor and Outdoor Application |
