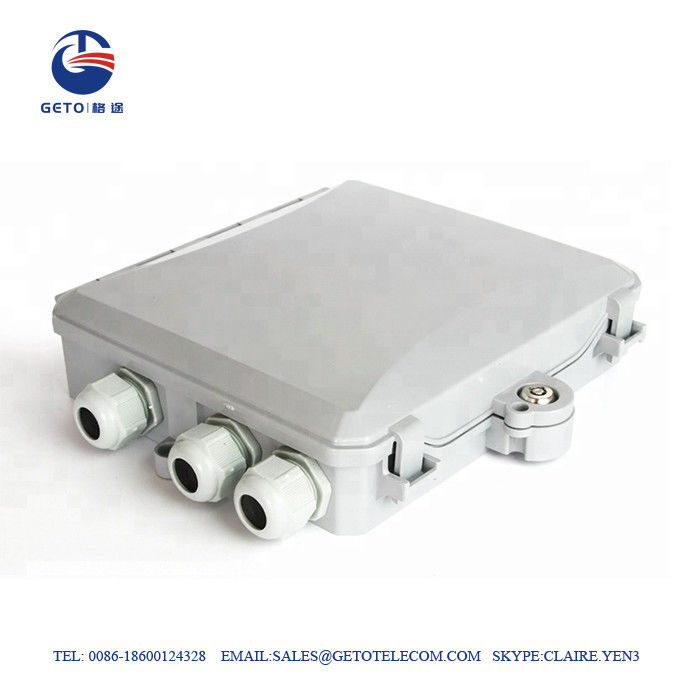

Product Details:
|
| Product Name: | Fiber Optic Termination Box | Size: | 222*204*54mm |
|---|---|---|---|
| Insulation Resistance: | ≥ 2 * 1020MΩ/500V | Door Opening Angle: | ≥180 ° |
| Material: | ABS+PC | Operating Temperature: | -40~+75℃ |
| Color: | White , Black ,grey | Warranty Time:: | 6 Months |
| Service: | OEM ODM | Protection Grade: | IP65 |
| High Light: | Fiber Terminal Box ODM,Fiber Terminal Box OEM,IP65 Ftth Termination Box |
||
Description
1.Industry Standard User Interface, be made of ABS plastic.
2.Can accommodate 1x12 COLOR fiber optic pigtail. Rainfall resistant, outdoor using.
3.Can load 12pcs LC, FC, ST, SC ... adapters.
4.Wall mounting and pole mounting application.
5.2pcs cable entry ports; cable can be entry without cutting.
6.12pcs exit ports for FTTH drop cable.
Applications
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
| Material | ABS+PC |
| Weight | 1kg |
| Insulation resistance | ≥ 2 * 1020MΩ/500V |
| Size | 222*204*54mm |
| Operation temperature | -40℃~+60℃ |
| Ambient humidity | ≤95% (+40 ℃) |
