Product Details:
|
Product Name: | GPJ09-8208 Fiber Optic Splice Closure | Sealing Method: | Silica Gel O-ring/mechanical Sealing |
---|---|---|---|
Splice Applications: | Express,tap-off,branch,and Repair | Protection Grade: | IP68 |
Working Environment: | Aerial,pedestal,buried,handhole,and Manhole | Port: | Can Be Customized |
Fiber Capacity: | 24~144 Core Or Customkized | Splice Closure Material: | PP |
Cable Construction: | Loose Buffer Tube,central Core Tube,loose Fiber,and Ribbon | ||
Highlight: | IP68 Optic Splice Closure,IP68 Fiber Optic Splice Closure,48 Cores Outdoor Fiber Splice Enclosure |
Description
This horizontal type in-line closure is a sealed fiber optic splice closure designed for cable joint applications in the telecom outside plant network. The closure is suitable for deployment in aerial, underground or direct buried environments.
the closure comes complete with mass splicing trays and cable attachment devices.
Feature

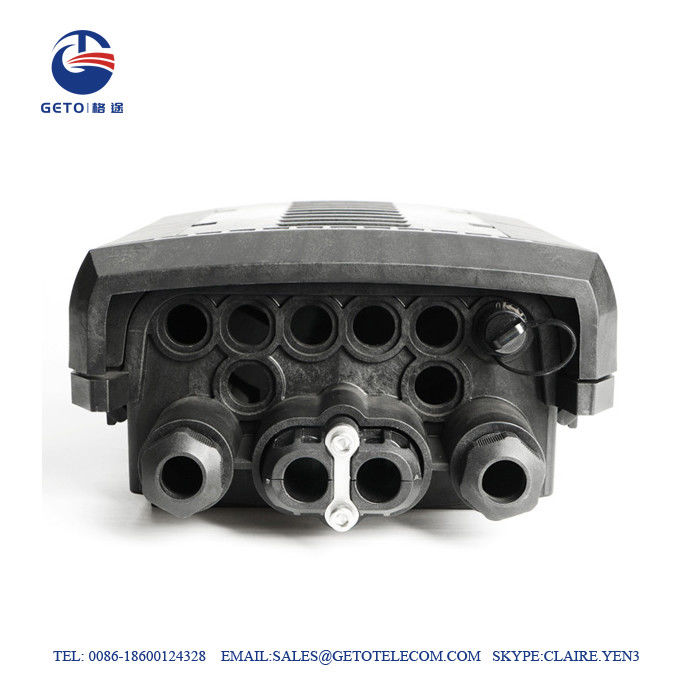

1 port for uncut cable Ф10~ 17.5mm. 2 branch ports for Ф10-7.5mm cable.
Capacity: 12F per tray, could be installed with 12 trays, max capacity is 144F.
Protection grade: IP68.
Mechanical seal.
Installation method: Wall-mounting. Pole-mounting.
Could be installed with micro type splitters or outdoor adapters 8 pcs.
Designed to be flipped over without screw. Easy to use.
All the splice trays are hinged together at one side. which eases the operation of each tray.Optic fiber will not be damaged because of the mess of transitional tube.Also cables in one tray can be spliced in other trays.
1 port for uncut cable Ф10~ 17.5mm. 2 branch ports for Ф10-7.5mm cable. 8 pcs of outdoor adapters. | |
All the splice trays are hinged together at one side. independent operation to one tray would not affect other. Max capacity is 144F. |
Specification
Type | Dimensions(mm) | Weight (kg) | Inner Carton (mm) | Outer Carton (mm) |
GPJ09-8208 144F fiber optical splice closure | 380×245×130 | 3.0-4.0 | 395×255×165 | 540×410×350 (4 pcs) |
